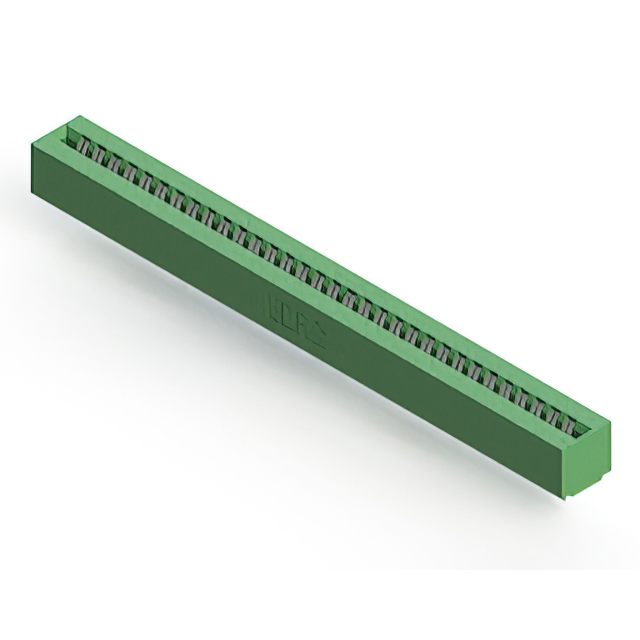

306-032-420-101

$14.38

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:0b82ec91f9cf Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：32
Number of Positions：64
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-032-420-101

Overview

The EDAC Inc. model 306-032-420-101 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features 64 positions and a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are made of copper alloy with a tin plating finish. The insulator body is constructed from green thermoplastic polyester.

Feature Summary

Accepts .062 inch nominal thickness PCBs
Low profile insulator body design
Single centerline row configuration

Applications

Panel mounted electronic assemblies
Vertical interconnection systems
Standard card edge board connections

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number 306-032-420-101 with official EDAC documentation. Confirm that the specific ordering suffix matches the required pin count, contact material, and mounting style. Ensure compliance with applicable environmental standards such as RoHS before finalizing procurement orders.

Selection Notes

Select this connector when a vertical, panel-mount interface is required for a 64-position dual-edge card. The 3.96 mm pitch accommodates standard board thicknesses. Verify that the tin-plated contacts meet the conductivity requirements for the intended application environment compared to gold-plated alternatives.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting configurations. This specific part represents a high-density option within the lineup, utilizing a thermoplastic polyester housing for durability in industrial settings.

Replacement Considerations

Compatible substitutes include other EDAC 306 series parts with matching 64 positions and 3.96 mm pitch, such as 306-032-420-102 or 306-032-420-112. Verify that alternative suffixes correspond to identical mechanical dimensions and contact plating specifications.
