Product Detailed Parameters

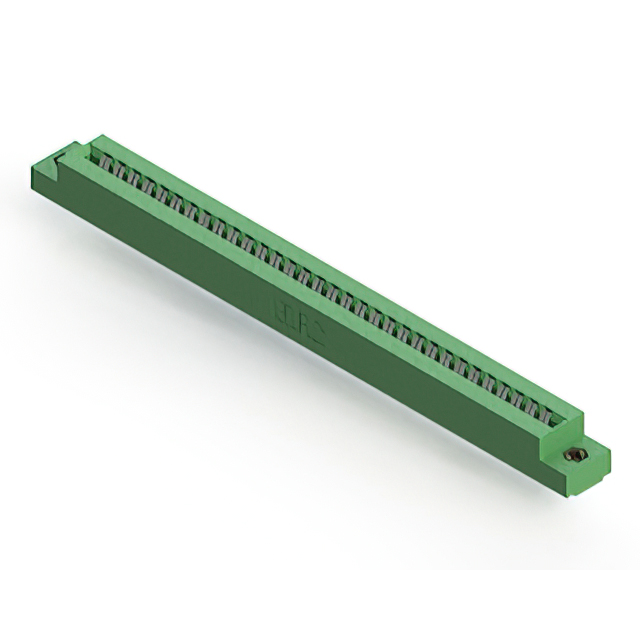

- Description：CONN EDGE DUAL FMALE 64POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：32
- Number of Positions：64
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview
The EDAC Inc. 306-032-420-108 is a standard card edge connector receptacle designed for single-side insertion. It features 32 positions with a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator body. It supports a current rating of 5 A and employs solder pin termination for secure through-hole mounting.
Feature Summary
- Single-sided female contact configuration for standard card edge board insertion
- Low-profile insulator body constructed from thermoplastic polyester
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Vertical panel mount installation style with solder pin termination
Applications
- Industrial control system interface connections
- Telecommunications equipment backplane integration
- Test and measurement instrument module attachment
Procurement Notes
Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with target PCB specifications. Ensure that the required contact spacing, board thickness tolerance, and current ratings align with the design requirements. Confirm availability status and lead times directly with authorized distributors or the manufacturer prior to procurement planning.
Selection Notes
Select this component when a single-sided card edge connection is required for thicker 1.57 mm PCBs. The 3.96 mm pitch suits applications needing robust mechanical retention with moderate pin counts. Verify that the vertical orientation and panel mount style fit the enclosure constraints. Consider the 5 A current rating for power distribution needs within the connected assembly.
Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles for diverse electronic interconnection needs. The 306-032-420-108 specifically addresses single-sided applications requiring high durability and precise alignment for 32-contact interfaces in industrial environments.
Replacement Considerations
Consult official EDAC substitution guides for direct replacements. Cross-reference compatible parts based on identical pin count, pitch, and mounting style. Verify that alternative components meet the same electrical and mechanical specifications before implementation.
