Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 64POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：32
- Number of Positions：64
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

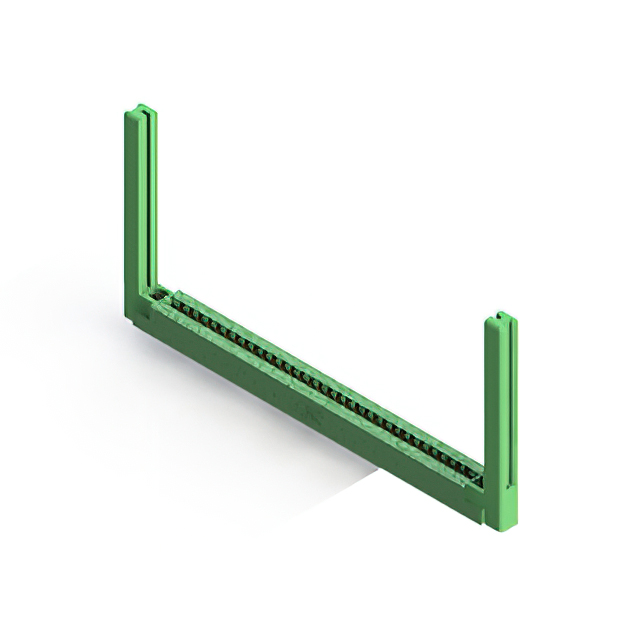

The EDAC Inc. 306-032-521-158 is a card edge connector featuring 32 positions with dual female contacts and a 0.156-inch (3.96mm) spacing. Designed for panel mount installation, it utilizes through-hole termination with gold-plated cantilever spring contacts. The unit accommodates printed circuit boards with thicknesses ranging from 0.054 to 0.070 inches (1.37mm to 1.78mm). Constructed with a green thermoplastic polyester insulator, the component operates within a temperature range of -40°C to 105°C.
Feature Summary
- Dual-edge female contact configuration ensures reliable signal transmission for specified board thicknesses.
- Gold-plated cantilever spring contacts provide durable electrical connections resistant to corrosion.
- Panel mount design with flanged features facilitates secure mechanical integration into equipment enclosures.
Applications
- Industrial control systems requiring robust interconnect solutions
- Medical device instrumentation panels
- Agricultural technology monitoring equipment
Procurement Notes
Verify that the specific part number matches the required contact count and spacing specifications before procurement. Confirm compatibility with the target printed circuit board thickness range to ensure proper mechanical fit. Check regional availability restrictions as distribution may vary by location. Ensure compliance with relevant environmental standards such as RoHS if applicable to the end application requirements.
Selection Notes
Select this component when a dual-edge connector with 0.156-inch spacing is required for panel-mounted applications. Consider the operating temperature range and material composition to ensure suitability for the intended environment. Evaluate the mechanical stability provided by the flanged design against vibration or stress conditions in the final assembly context.
Part Context
This component belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and spacing options tailored for diverse electronic interconnection needs. It is commonly utilized in sectors demanding reliable performance under varying environmental conditions.
Replacement Considerations
Consult official EDAC documentation for direct substitutes within the 306 series. Verify that any alternative maintains identical spacing, contact configuration, and mounting characteristics to preserve system integrity.
