306-032-521-168

Overview

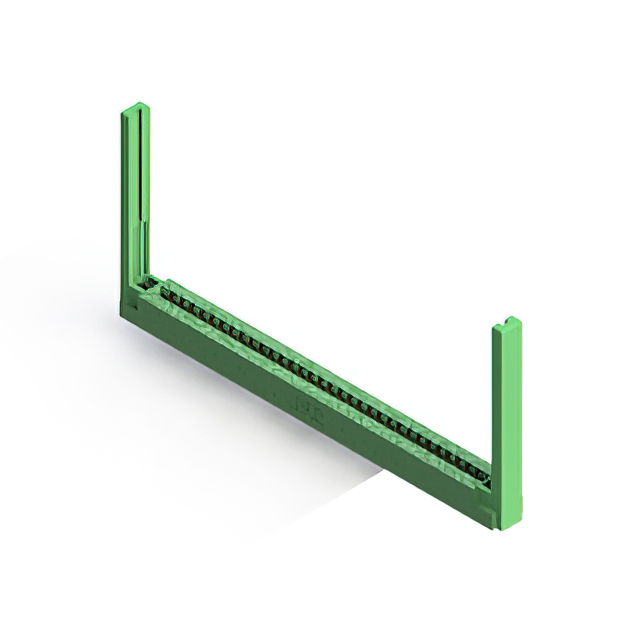

The EDAC Inc. 306-032-521-168 is a dual-edge female card edge connector designed for board-to-board interconnection. It features 64 positions with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated contacts and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It employs a low-profile insulator body and tail-type contacts for termination.

Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated contact surfaces for reliable conductivity
• Low-profile insulator body design for space-constrained applications

Applications

• Industrial control systems requiring robust edge connections
• Telecommunications equipment interface modules
• Computing hardware backplane interconnects

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct contact plating, insulation material, and termination style. Confirm that the target application supports the required 0.156-inch pitch and board thickness specifications before finalizing procurement decisions.

Selection Notes

Select this component when a dual-edge female connector with a 0.156-inch pitch is required. Ensure the design accommodates the 64-position count and the specified 0.062-inch board thickness. Validate compatibility with the intended PCB layout and mating requirements.

Part Context

This part belongs to the EDAC 306 series of card edge connectors. The series is characterized by its 0.156-inch contact spacing and availability in various position counts. It serves as a standard solution for high-density interconnect needs in electronic assemblies.

Replacement Considerations

Consult the official EDAC substitution guide for verified alternative part numbers. Generic equivalents may not match the precise dimensional or electrical characteristics required for this specific application.
