Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 66POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：33
- Number of Positions：66
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Free Hanging (In-Line)
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

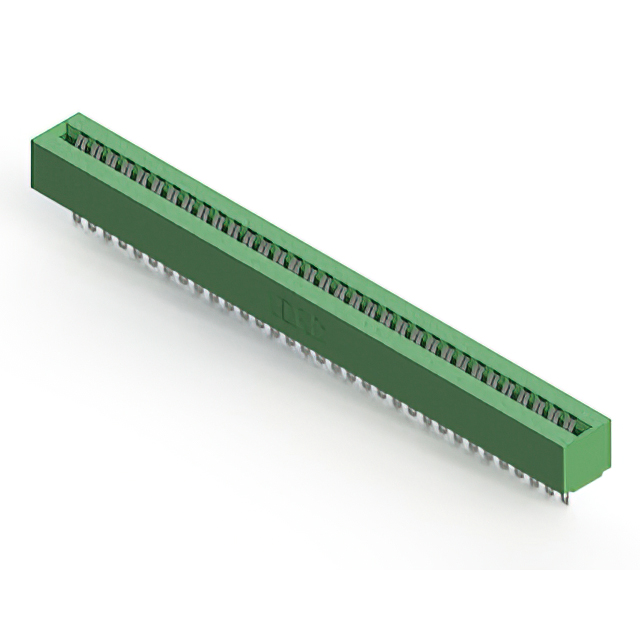

The EDAC Inc. 306-033-400-101 is a standard card edge connector designed for vertical panel mounting applications. It features 33 positions with a contact spacing of 3.96 mm (0.156 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Electrical specifications include a current rating of 5 A and an insulation resistance of 5 Gohms. The contacts are constructed from copper alloy and feature gold plating to ensure reliable signal transmission.
Feature Summary
- Vertical panel mount design for secure structural integration
- Gold-plated copper alloy contacts for corrosion resistance
- Accepts standard 1.57 mm thick PCB substrates
Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Test and measurement instrument modules
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, board thickness compatibility, and termination style. Ensure that the procurement documentation explicitly references part number 306-033-400-101 to avoid substitution errors with similar series components. Cross-reference RoHS compliance status if required by project specifications.
Selection Notes
Select this component when a vertical card edge interface with 33 positions is required. Confirm that the target PCB thickness matches the 1.57 mm specification. Verify that the operating environment does not exceed the thermal limits defined in the official datasheet. Ensure sufficient panel space is allocated for the vertical mounting profile.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by single centerline row configurations and low-profile insulator bodies. It is engineered for high-reliability connections in demanding electronic assemblies where robust mechanical retention and stable electrical performance are critical requirements.
Replacement Considerations
Direct substitutes must match the 33-position count, 3.96 mm pitch, and vertical panel mount orientation. Verify that alternative parts accept the same 1.57 mm PCB thickness. Consult the manufacturer's cross-reference guide for officially validated replacement part numbers.
