Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 66POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：33
- Number of Positions：66
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

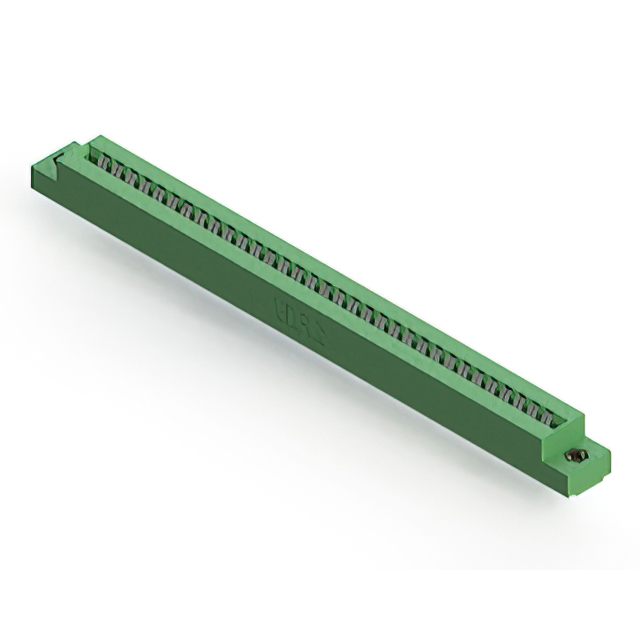

The EDAC Inc. model 306-033-420-108 is a standard card edge connector receptacle featuring 33 positions with a 3.96 mm pitch. It utilizes a single centerline row and accepts printed circuit boards with a nominal thickness of 1.57 mm. The connector employs gold-plated copper alloy contacts rated for 5 A current and offers an insulation resistance of 5 Gohms. Designed for panel mount installation at a vertical angle, it operates within a temperature range of -40°C to +105°C.
Feature Summary
- Accepts .062 inch nominal thickness PCBs
- Low profile insulator body design
- Gold-plated copper alloy contacts
Applications
- Panel-mounted electronic assemblies
- Industrial control systems
- Communication equipment interfaces
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct contact configuration and termination style. Confirm that the required board thickness matches the connector's acceptance specifications. Check regional availability as distribution status may vary by location. Ensure compliance with RoHS requirements if applicable to the project constraints.
Selection Notes
Select this component when a single-row, vertical card edge interface is required for panels. The 3.96 mm pitch accommodates standard board layouts. Verify that the 5 A current rating meets the application's electrical demands. Consider the operating temperature range for environmental suitability in industrial settings.
Part Context
This part belongs to the EDAC 306 series of edgeboard connectors. The series provides various position counts and mounting options for standard card edge applications. The 306-033 variant specifically addresses higher density needs within the single-row format while maintaining the established 3.96 mm spacing standard.
Replacement Considerations
Direct substitutes include other EDAC 306 series parts with matching 33 positions and 3.96 mm pitch, such as 306-033-420-158 or 306-033-520-102, provided they meet the same mechanical and electrical criteria.
