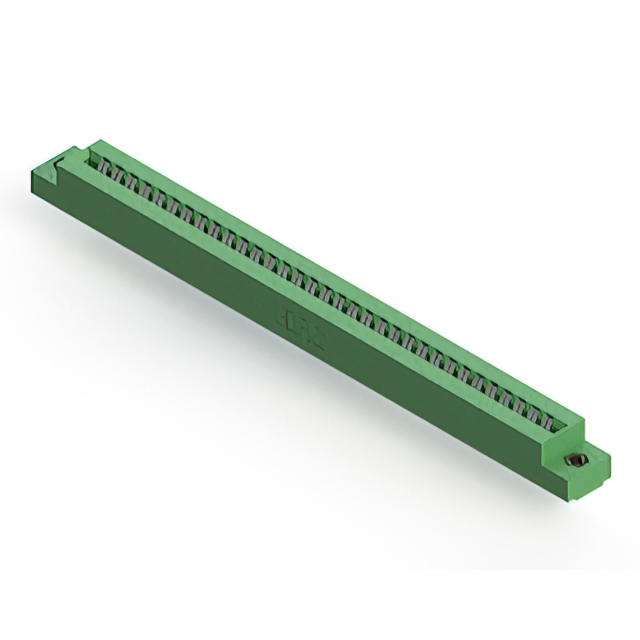

306-033-421-107

$16.47

Description：CONN EDGE DUAL FMALE 66POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:678e89c7992b Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 66POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：33
Number of Positions：66
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Download product information

306-033-421-107

Overview

The EDAC Inc. 306-033-421-107 is a standard card edge connector from the 306 series, designed for panel mount applications with vertical orientation. It features 66 positions (2 rows of 33) with a 3.96 mm pitch and accepts board thicknesses between 1.37 mm and 1.78 mm. The contacts are made of copper alloy with tin plating, rated for 5 A current. The housing is green thermoplastic polyester, supporting operating temperatures from -40°C to +105°C.

Feature Summary

Dual-edge female contact configuration for secure board insertion
Panel mount installation style with vertical alignment
Thermoplastic polyester insulation material for durability

Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Test and measurement instrument interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating and flange characteristics. Ensure compatibility with the target PCB thickness range of 1.37 mm to 1.78 mm before procurement. Confirm RoHS compliance status as per the latest product documentation.

Selection Notes

Select this component when a dual-row, panel-mount card edge connector with a 3.96 mm pitch is required. Consider the tin-plated contacts for general-purpose applications and verify that the 66-position count matches the circuit design requirements. Ensure the vertical mounting angle fits the enclosure constraints.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting options, providing a scalable solution for high-density interconnect needs in rugged environments. The 306 series is widely used in industrial and commercial electronics requiring reliable signal transmission.

Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and position counts but different plating or flange options, such as 306-033-521-107. Cross-reference mechanical drawings to ensure flange dimensions and mounting hole patterns match the existing design.
