306-033-520-101

Overview

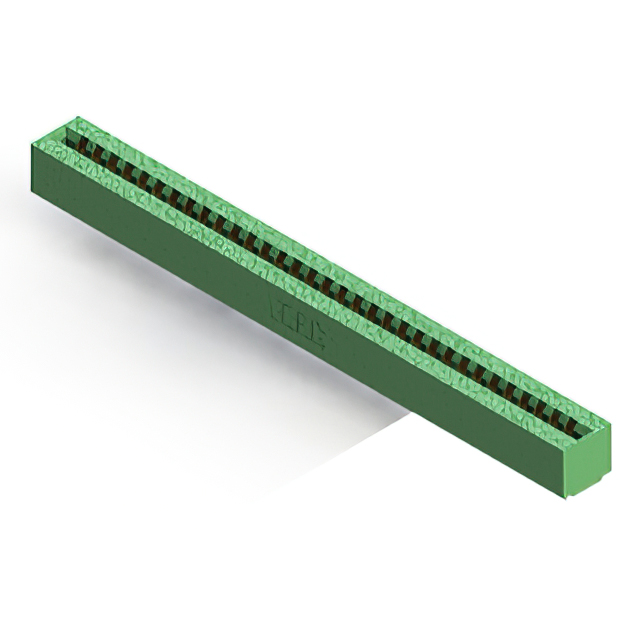

The EDAC Inc. 306-033-520-101 is a standard card edge connector from the 306 series, designed for vertical panel mounting. It features a dual female configuration with 66 positions and a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are gold-plated copper alloy, rated for 5 A current, while the thermoplastic housing provides high insulation resistance.

Feature Summary

• Dual edge female contact configuration for secure board insertion
• Vertical panel mount style with low profile insulator body
• Gold-plated copper alloy contacts ensuring reliable conductivity
• Thermoplastic housing material offering high insulation resistance

Applications

• Industrial control systems requiring robust card edge connections
• Communication equipment utilizing standard PCB form factors
• Consumer electronics assemblies needing vertical panel integration

Procurement Notes

Verify the specific suffix code to confirm exact pin count and termination type, as variations exist within the 306 series. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm RoHS compliance status matches project requirements. Cross-reference the manufacturer part number against distributor listings to avoid ordering errors due to similar series designations.

Selection Notes

Select this component when a vertical, dual-edge connection is required for a 66-position interface. The 3.96 mm pitch suits applications where standard spacing is preferred over finer geometries. Consider the 5 A current rating for power distribution needs alongside signal transmission. The panel mount style eliminates the need for additional bracketry in chassis designs.

Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge solutions. The series offers various position counts and termination options to accommodate diverse PCB layouts. EDAC designs these components for durability in industrial and commercial environments, emphasizing consistent electrical performance across the product line.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate connectors within the same 306 series or compatible 845 series if higher temperature ratings are needed. Verify mechanical dimensions and electrical ratings match before substituting any alternative component.
