306-034-400-101

Overview

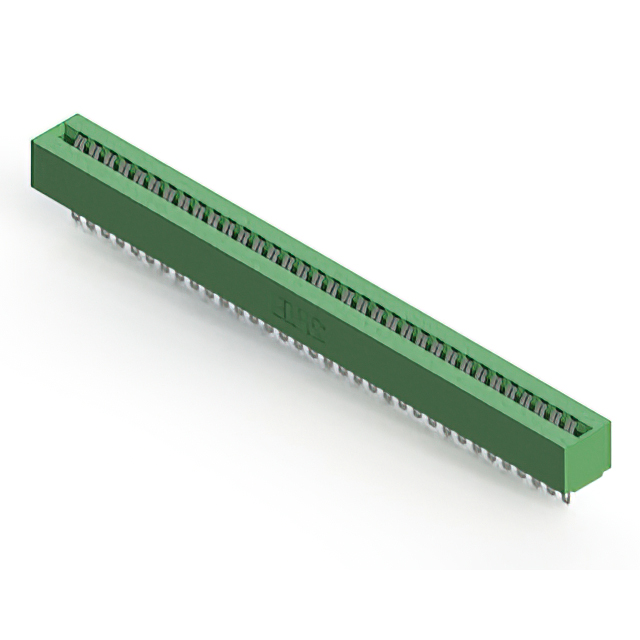

The EDAC Inc. 306-034-400-101 is a dual-edge female card edge connector designed for panel and through-hole mounting. It features 68 positions with a 0.156-inch (3.96mm) contact spacing arranged in a single centerline row. The connector accepts printed circuit boards with thicknesses ranging from 0.054 to 0.070 inches (1.37mm to 1.78mm). Contacts are made of copper alloy with tin plating, housed in green thermoplastic polyester insulation. It operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Feature Summary

• Dual-edge female configuration with 68 positions for secure board insertion
• 0.156-inch contact spacing with a single centerline row design
• Tin-plated copper alloy contacts for reliable conductivity
• Green thermoplastic polyester insulation body for durability

Applications

• Panel-mounted electronic assemblies requiring dual-edge connectivity
• Through-hole PCB integration for industrial control systems
• Equipment utilizing standard 0.054 to 0.070 inch thick circuit boards

Procurement Notes

Verify the specific part number suffix against official EDAC documentation to ensure correct pin count and termination style. Confirm that the required PCB thickness falls within the specified 0.054 to 0.070 inch range for proper mechanical engagement. Check RoHS3 compliance requirements if applicable to your manufacturing process. Ensure panel mounting holes align with the flange specifications provided in the official datasheet drawings.

Selection Notes

Select this component when a dual-edge female connector with 68 positions is required for through-hole installation. The 0.156-inch spacing suits applications needing robust mechanical retention without surface-mount constraints. Consider the operating temperature range of -40°C to 105°C for environmental suitability. Verify that the green insulator color meets any visual identification standards for your assembly line.

Part Context

This connector belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination styles for diverse electronic interconnect needs. The 306-034-400-101 variant specifically addresses high-density dual-edge applications with through-hole compatibility. It is part of a broader family including similar models like the 306-043-421-104, differing primarily in position count and physical dimensions.

Replacement Considerations

Public confirmed substitute part numbers: None identified in available documentation.
