306-034-400-112

Overview

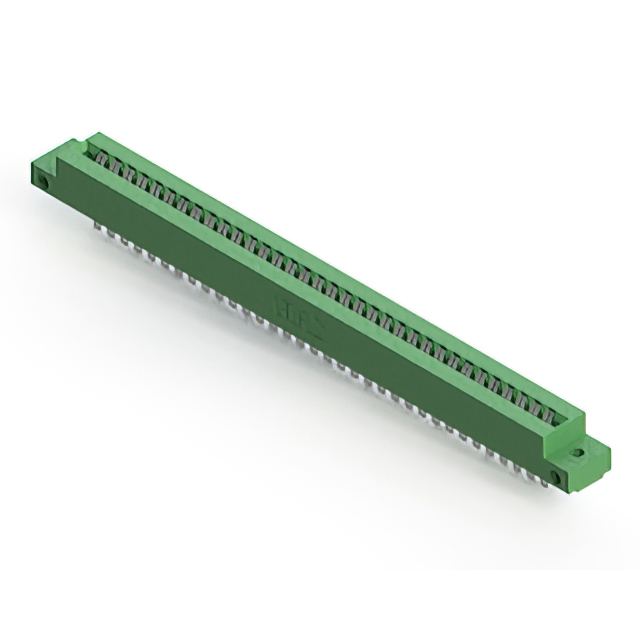

The EDAC Inc. 306-034-400-112 is a dual-edge female card edge connector featuring 68 contact positions arranged in two rows. It utilizes a .156 inch (3.96mm) contact spacing and accepts printed circuit boards with a nominal thickness of .062 inches (1.57mm). The contacts are tin-plated, and the insulator body is green. This component is designed for high-density interconnect applications requiring reliable signal transmission.

Feature Summary

• Dual female configuration with 68 total contact positions across two rows
• Tin plating on all contacts to ensure corrosion resistance and conductivity
• Low profile insulator body construction for compact assembly requirements

Applications

• High-density interconnect systems in industrial equipment
• Card edge connections in computing and storage hardware
• Signal routing in aerospace and medical device assemblies

Procurement Notes

Verify that the required board thickness matches the .062 inch specification. Confirm that the application environment does not require gold plating instead of tin. Ensure the mating card edge width aligns with the connector's design limits. Check for any specific RoHS compliance documentation if required by your supply chain standards.

Selection Notes

Choose this model when a dual-row female connector with .156 inch spacing is needed. It is suitable for applications where low profile and high pin count are prioritized. Consider alternative series if different contact spacing or plating materials are necessary for the specific environmental conditions.

Part Context

This part belongs to the EDAC 306 Series, which specializes in card edge connectors with .156 inch contact spacing. The series offers various configurations including single and dual edge options. EDAC provides these components for global distribution channels serving computing, storage, medical, and aerospace sectors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
