Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 68POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：34
- Number of Positions：68
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

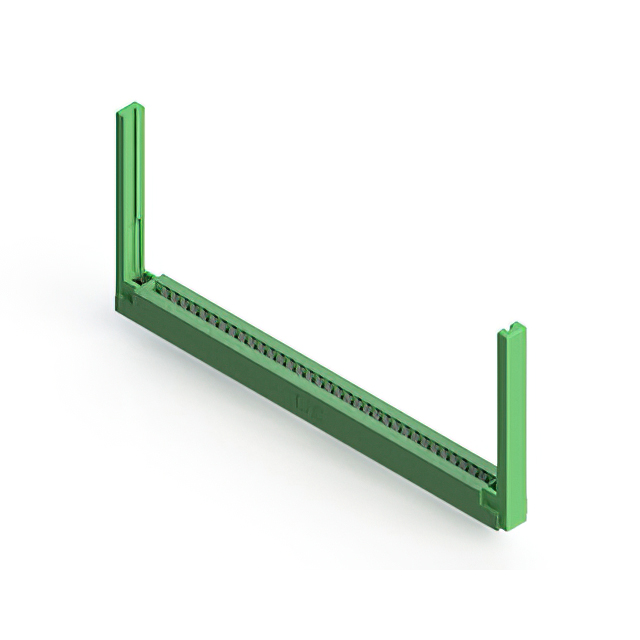

The EDAC Inc. 306-034-421-168 is a dual-edge female card edge connector designed for panel and through-hole mounting. It features 68 positions arranged in two rows with a 0.156-inch (3.96mm) contact spacing. The contacts are made of copper alloy with a tin finish, housed in green thermoplastic polyester insulation. It supports card thicknesses from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.
Feature Summary
- Dual-edge female configuration for non-specified board types
- Tin-plated copper alloy contacts for reliable signal transmission
- Green thermoplastic polyester insulation housing
- Panel mount and through-hole termination style
Applications
- Industrial control systems requiring robust edge connections
- Communication equipment interface modules
- Consumer electronics internal board interconnects
- Energy sector circuit board assemblies
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current 306 Series Ordering Guide to ensure compatibility with required flange features and termination styles. Confirm that the tin finish meets environmental compliance requirements such as RoHS3. Cross-reference the package quantity specifications with distributor data sheets prior to purchase to align with assembly line needs.
Selection Notes
Select this component when a dual-edge female connector with 0.156-inch spacing is required for panel installation. Ensure the target PCB card thickness falls within the 0.054 to 0.070-inch range. Consider the operating temperature limits and material composition if high thermal stability or specific chemical resistance is necessary for the application environment.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306-034 variant specifically provides 68 positions, balancing connectivity density with standard spacing dimensions suitable for general-purpose electronic applications across multiple industries.
Replacement Considerations
Consult the official EDAC 306 Series cross-reference documentation for verified substitute part numbers. Verify that any alternative maintains identical pin count, spacing, and mounting characteristics.
