306-034-521-108

Overview

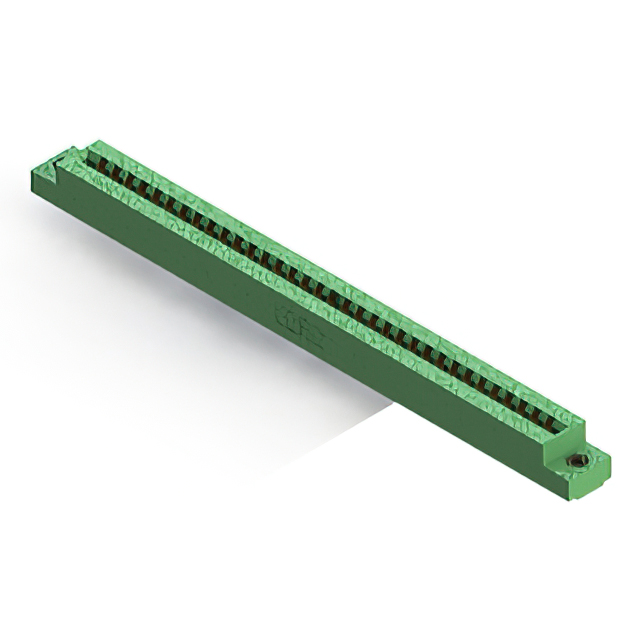

The EDAC Inc. 306-034-521-108 is a standard card edge connector receptacle featuring 34 positions with dual female contacts. It utilizes a .156 inch (3.96 mm) contact spacing and accepts printed circuit boards with a nominal thickness of .062 inch (1.57 mm). The component employs gold-plated terminations for reliable signal transmission and is designed for panel mount installation at a vertical angle.

Feature Summary

• Dual female contact configuration for secure card edge engagement
• Gold-plated termination surfaces ensuring corrosion resistance
• Low profile insulator body design for space-constrained applications

Applications

• Industrial control system interconnects
• Medical device circuit board connections
• Agricultural technology equipment interfaces

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, plating specifications, and mounting style. Ensure compatibility with target PCB thickness and panel cutout dimensions before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Selection Notes

Select this component when a dual-row female card edge connector with 34 positions is required. Confirm that the .156 inch pitch aligns with the mating card edge guide requirements. Verify that the vertical panel mount style suits the enclosure design constraints.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306 series is characterized by its robust construction and suitability for general-purpose electronic interconnect applications across multiple industries.

Replacement Considerations

Direct substitutes include EDAC part number 306-034-521-168, which shares similar physical characteristics but may differ in specific packaging or lead time classifications. Always verify mechanical drawings before substitution.
