306-035-420-101

$15.51

Description：CONN EDGE DUAL FMALE 70POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:f2fcdbaf417d Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 70POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：35
Number of Positions：70
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-035-420-101

Overview

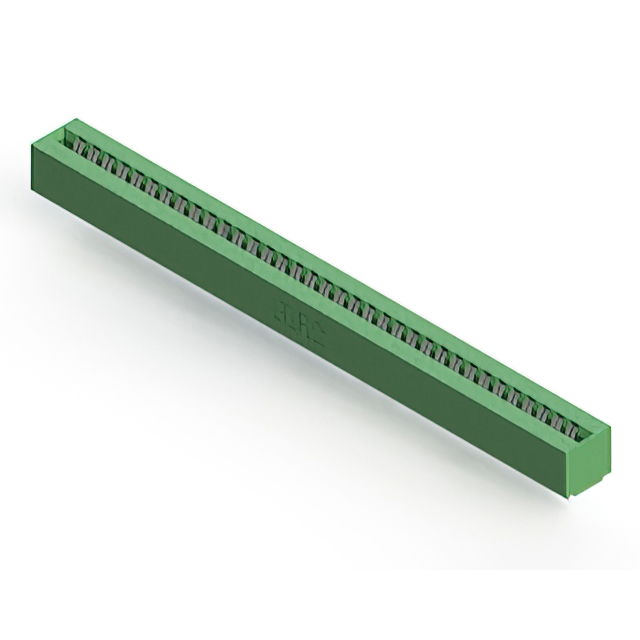

The EDAC Inc. 306-035-420-101 is a standard card edge connector receptacle featuring 70 positions in a dual-edge configuration. It utilizes a 0.156-inch (3.96 mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The component employs tin-plated copper alloy contacts terminated via solder pins. Designed for panel mount installation, the unit features a green thermoplastic polyester insulator body.

Feature Summary

Dual-edge female contact configuration for secure board insertion
Low-profile insulator body design for space-constrained applications
Single centerline row arrangement with standardized 0.156-inch pitch

Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Consumer electronic module interfaces

Procurement Notes

Verify the specific ordering suffix to confirm plating type and termination style. Confirm that the required PCB thickness aligns with the 0.062-inch specification. Ensure the panel mounting flange dimensions match the enclosure design. Check RoHS compliance status against current regulatory requirements for the target market.

Selection Notes

Select this component when a high-density dual-edge interface is required. The 70-position count supports complex signal routing. Tin plating offers cost-effective conductivity for general-purpose use. Verify compatibility with existing board guide systems before integration into the assembly design.

Part Context

This part belongs to the EDAC 306 series, which provides standard card edge connectors. The series includes various position counts and termination options. The 306 series is designed for reliable vertical panel mount connections. It serves as a foundational component for modular electronic hardware architectures.

Replacement Considerations

Cross-reference with EDAC part number 306-035-420-102 for similar specifications. Verify mechanical fit and electrical ratings before substitution. Ensure the replacement maintains the same contact spacing and board thickness tolerance.
