306-036-520-101

Overview

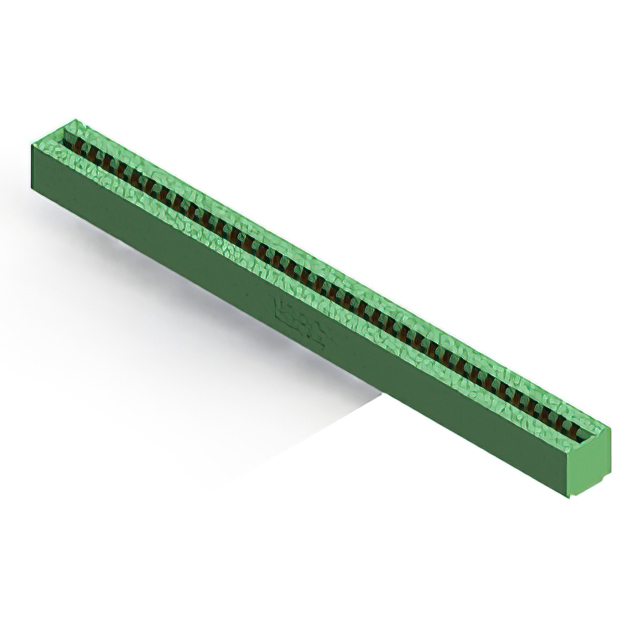

The EDAC Inc. 306-036-520-101 is a standard card edge connector designed for dual-edge board insertion. It features 72 positions with a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are gold-plated copper alloy, rated for 5 A current. The insulator body is green thermoplastic, offering an insulation resistance of 5 Gohms.

Feature Summary

• Dual-edge female configuration for secure board retention
• Low-profile insulator body design
• Gold-plated contacts for reliable conductivity
• Vertical panel mounting style

Applications

• Industrial control systems
• Telecommunications equipment
• Consumer electronics assemblies
• Medical device interfaces

Procurement Notes

Verify the specific ordering suffix to ensure correct contact plating and insulator color specifications match project requirements. Confirm that the target PCB thickness aligns with the 0.062-inch nominal acceptance range. Check regional availability as distribution status may vary by location. Ensure compliance with RoHS directives if required for the final assembly environment.

Selection Notes

Select this component when a dual-edge card edge connector with 72 positions is required. The 3.96 mm pitch suits applications needing moderate density without excessive miniaturization. Verify that the vertical panel mount orientation fits the mechanical enclosure constraints. Ensure the 5 A current rating meets the electrical load requirements of the connected circuitry.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and mounting options for general-purpose electronic interconnections. The 306 series is characterized by its robust thermoplastic housing and standardized contact spacing, facilitating integration into diverse hardware platforms requiring reliable signal transmission.

Replacement Considerations

Cross-reference with other EDAC 306 series variants such as 306-036-520-102 or 306-036-520-112 for differences in plating or color. Verify mechanical compatibility with existing PCB layouts before substitution. Ensure equivalent electrical ratings and mounting styles are maintained to preserve system integrity.
