306-036-520-108

$17.60

Description：CONN EDGE DUAL FMALE 72POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:24c3dd0c1cd8 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 72POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：36
Number of Positions：72
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-036-520-108

Overview

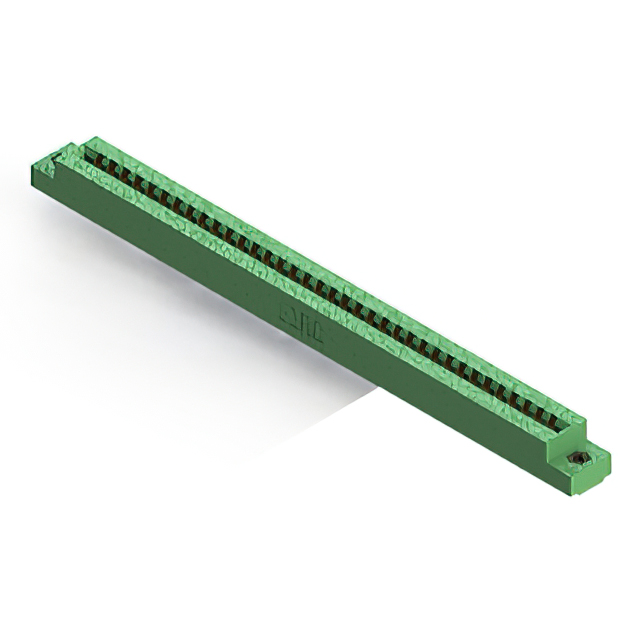

The EDAC Inc. model 306-036-520-108 is a standard card edge connector from the 306 series, designed for vertical panel mounting applications. This dual-edge female connector features 72 positions with a contact spacing of 0.156 inches (3.96 mm). It utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and is rated for a current capacity of 5 A. The unit accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm) and incorporates a low-profile thermoplastic insulator body.

Feature Summary

Dual-edge female configuration providing 72 connection points
Gold-plated copper alloy contacts for enhanced conductivity
Vertical panel mount installation style
Low-profile thermoplastic housing construction

Applications

Industrial control systems requiring robust board-to-board connectivity
Communication equipment interfaces
Medical device internal connections
Energy sector hardware assemblies

Procurement Notes

Verify component authenticity through authorized EDAC distributors or Northern Technologies channels. Confirm that the specific suffix matches the required 72-position dual-edge specification. Ensure compatibility with 1.57 mm PCB thickness standards before procurement. Check regional availability as distribution status may vary by location.

Selection Notes

Select this connector when a vertical panel mount solution is required for dual-edge cards. The 3.96 mm pitch suits applications needing high-density connections without excessive height constraints. Verify that the 5 A current rating meets system power requirements. Ensure the thermoplastic housing material aligns with environmental operating conditions.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles for diverse electronic assembly needs. EDAC, now part of Northern Technologies, provides these connectors for global industrial and commercial markets.

Replacement Considerations

Cross-reference with other 306-series variants for different position counts. Verify mechanical fit with existing panel cutouts and PCB edge guides. Ensure mating card specifications align with the dual-edge female interface design.
