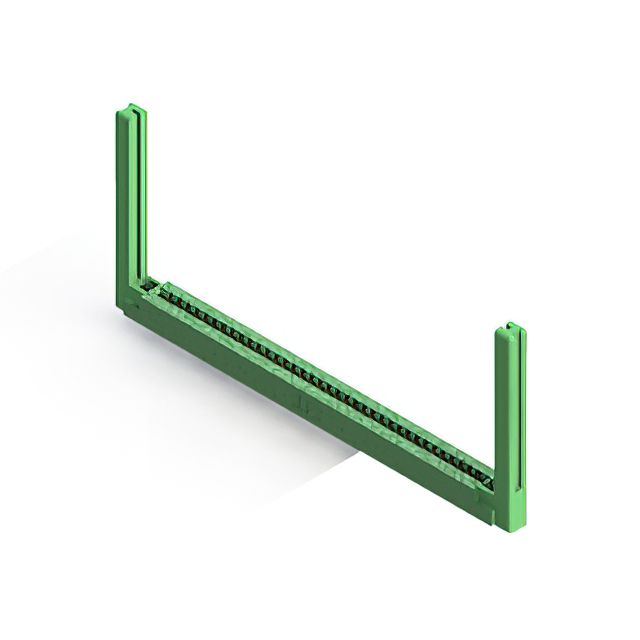

306-036-521-158

$18.18

Description：CONN EDGE DUAL FMALE 72POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:64aabc982d81 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 72POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：36
Number of Positions：72
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-036-521-158

Overview

The EDAC Inc. 306-036-521-158 is a dual-edge female card edge connector from the 306 Series, designed for panel and through-hole mounting. It features 72 positions arranged in two rows with a 0.156-inch (3.96mm) spacing. The contacts are made of copper alloy with a gold plating finish, ensuring reliable conductivity. The insulator is green thermoplastic polyester, rated for operation between -40°C and 105°C. It accepts PCBs with thicknesses ranging from 0.054 to 0.070 inches.

Feature Summary

Dual-edge female configuration for secure board retention
Gold-plated cantilever contacts for corrosion resistance
Flush-mount flange with top opening and threaded inserts

Applications

Industrial control system backplanes
Medical equipment interconnects
Agricultural technology hardware

Procurement Notes

Verify the specific part number against official EDAC documentation to confirm pin count and spacing accuracy. Ensure that the target printed circuit board thickness falls within the specified 0.054 to 0.070 inch range for proper mechanical fit. Confirm RoHS compliance requirements match project specifications before finalizing procurement orders.

Selection Notes

Select this component when a high-density dual-edge interface is required for panel-mounted applications. The 0.156-inch pitch accommodates standard board layouts while providing robust mechanical stability. Consider the flush-mount design if space constraints require a low-profile installation relative to the chassis surface.

Part Context

This connector belongs to the EDAC 306 Series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles tailored for diverse electronic assembly needs. The 306-036 variant specifically addresses applications requiring higher pin density within the established 306 family footprint standards.

Replacement Considerations

Consult the official EDAC ordering guide for cross-referenced part numbers within the 306, 316, and 356 series. Verify compatibility with existing PCB layouts and mounting hole patterns before substituting.
