307-010-401-112

Edgeboard Connectors Overview

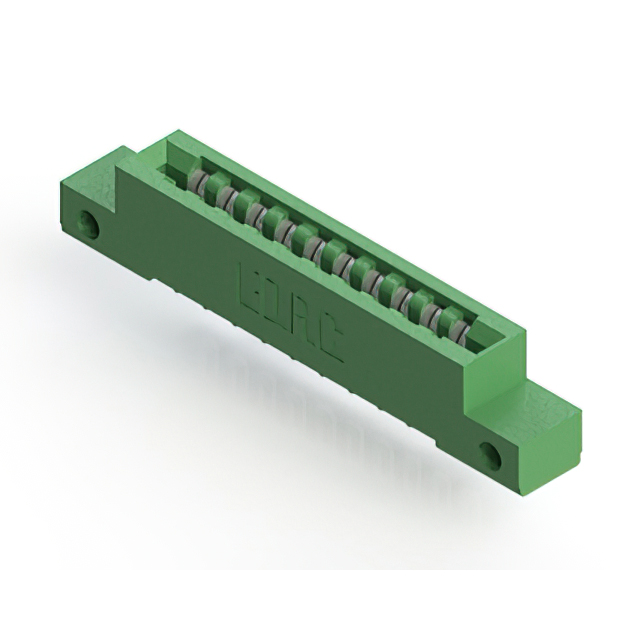

The EDAC Inc. model 307-010-401-112 is a standard card edge connector from the 307 series, classified as a header type. It features 10 positions with a contact spacing of 3.96 mm and a row spacing of 5.08 mm. Designed for vertical panel mount installation, it accommodates printed circuit boards with a nominal thickness of 1.57 mm. The contacts are constructed from copper alloy with gold plating, supporting a current rating of 5 A. The housing utilizes thermoplastic material, ensuring reliable insulation.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration for secure structural integration
• Gold-plated copper alloy contacts for enhanced conductivity
• Thermoplastic insulator body designed for low profile applications

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Automotive electronics assemblies needing high reliability

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and mounting variations. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Cross-reference the manufacturer part number with authorized distributors to confirm current availability status and regional shipping restrictions. Confirm RoHS compliance details if required by project specifications.

Edgeboard Connectors Selection Notes

Select this component when a single-row header with 10 positions is required for vertical panel mounting. The 3.96 mm pitch suits applications where standard card edge dimensions are mandated. Consider the 5 A current rating and gold plating for environments demanding stable electrical performance. Verify that the thermoplastic housing meets the thermal requirements of the intended operating environment.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 307 series, which provides standard card edge solutions. The series offers various position counts and termination options. The 307-010-401-112 specifically addresses needs for compact, high-reliability interconnects in panel-mounted configurations, serving as a critical interface between flexible or rigid circuit boards and system backplanes.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct equivalents. Verify that any alternative maintains the 3.96 mm pitch and 1.57 mm board thickness tolerance. Ensure mechanical fit and electrical ratings match the original design requirements.
