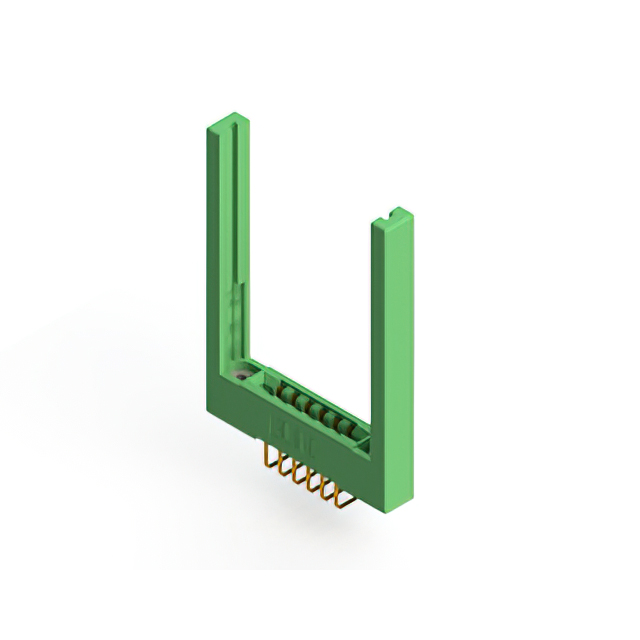

307-012-558-268

$8.42

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：307
Mfr：EDAC Inc.
Package：Box

SKU:8f31ae933320 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

307-012-558-268 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 307-012-558-268

Description：CONN EDGE DUAL FMALE 12POS 0.156
Series：307
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：6
Number of Positions：12
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Through Hole, Right Angle
Termination：Solder, Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 307-012-558-268

307-012-558-268

Edgeboard Connectors Overview

The EDAC Inc. 307-012-558-268 is a standard card edge connector from the 307 series, designed for panel mount applications with a right-angle orientation. It features 12 positions with a contact spacing of 3.96 mm and a row spacing of 5.08 mm. The connector accepts PCBs with a nominal thickness of 1.57 mm and utilizes gold-plated copper alloy contacts rated for 5 A current. Constructed with a thermoplastic housing, it operates within a temperature range of -40 °C to +105 °C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

Accepts 1.57 mm thick printed circuit boards
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic housing provides structural integrity and electrical insulation

Edgeboard Connectors Applications

Industrial control systems
Medical equipment interfaces
Communication network hardware

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC datasheet to confirm exact pin count, plating specifications, and mounting style. Ensure compatibility with the target PCB thickness of 1.57 mm and verify that the right-angle panel mount configuration aligns with the mechanical assembly requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 12-position connection is required with a 3.96 mm pitch. The right-angle design facilitates space-constrained panel installations. Confirm that the operating environment stays within the specified -40 °C to +105 °C range and that the 5 A current rating meets the circuit demands without requiring derating.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 Series, which specializes in standard card edge connectors for computing, storage, and industrial sectors. The series offers various position counts and mounting styles, providing versatile interconnect solutions for OEMs requiring robust card-to-board connections with consistent quality standards.
