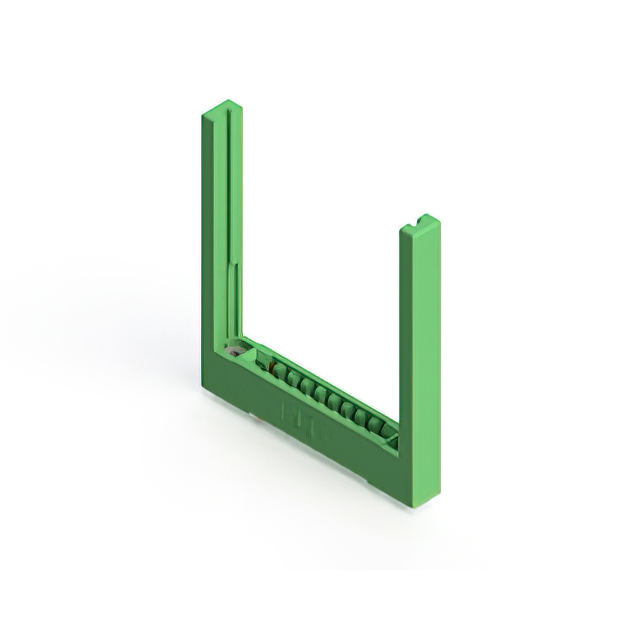

307-018-560-268 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 18POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 307-018-560-268
- Description：CONN EDGE DUAL FMALE 18POS 0.156
- Series：307
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：9
- Number of Positions：18
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Extender, Card Guides
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 307-018-560-268
Edgeboard Connectors Overview
The EDAC Inc. 307-018-560-268 is a standard card edge connector receptacle from the 307 series. It features 18 positions with a contact spacing of 3.96 mm and row spacing of 5.08 mm. Designed for dual female connections, it accepts printed circuit boards with a nominal thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 5 A current, and terminate via solder pins. The housing is constructed from thermoplastic polyester.
Edgeboard Connectors Feature Summary
- Dual female card edge connector design
- Gold-plated copper alloy contacts
- Accepts 1.57 mm PCB thickness
Edgeboard Connectors Applications
- Panel mount electronic assemblies
- Industrial control systems
- Telecommunications equipment
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and mechanical tolerances. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the 18-position configuration matches the system requirements. Check for any regional distribution restrictions or availability constraints associated with this specific part number variant.
Edgeboard Connectors Selection Notes
Select this component when a dual-sided card edge interface is required for 1.57 mm thick boards. The 3.96 mm pitch suits applications needing robust signal routing. Verify that the panel mounting style aligns with the enclosure design. Ensure the 5 A current rating meets the electrical load requirements of the connected circuits.
Edgeboard Connectors Part Context
This part belongs to the EDAC 307 series of standard card edge connectors. The series offers various position counts and mounting styles. The 307-018-560-268 specifically denotes an 18-position dual female connector with solder termination. It is designed for reliable interconnection in demanding environments.
Edgeboard Connectors Replacement Considerations
Compatible substitutes within the same series include 307-018-560-208 and 307-018-560-258. Verify that alternative part numbers match the required 18-position count and 3.96 mm pitch specifications.
