307-024-440-268

Edgeboard Connectors Overview

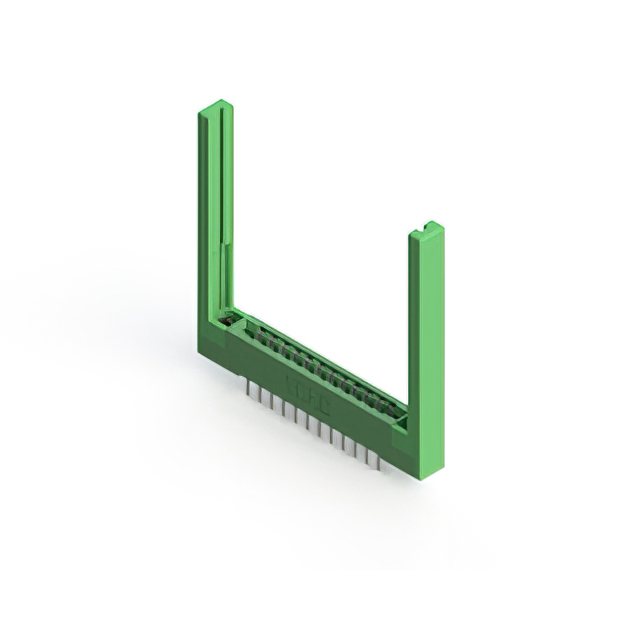

The EDAC Inc. 307-024-440-268 is a standard card edge connector from the 307 series, designed for dual female board-to-board applications. It features 24 positions with a 0.156-inch (3.96 mm) contact spacing and 0.200-inch (5.08 mm) row spacing. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts and a thermoplastic insulator, it utilizes a solder termination method for secure PCB mounting.

Edgeboard Connectors Feature Summary

• Dual female configuration supports two-row connection interfaces
• Low profile insulator body design minimizes vertical space requirements
• Copper alloy contacts ensure reliable electrical conductivity
• Solder termination provides permanent mechanical and electrical attachment

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Consumer electronic device internal modules
• Medical instrumentation circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating and material specifications, as variations exist within the 307 series. Confirm RoHS compliance status through official manufacturer documentation before integration. Ensure the selected variant matches the required current rating and operating temperature range for the target application environment.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female connector is required for 0.062-inch thick boards. The 3.96 mm pitch suits general-purpose digital signal transmission. Verify that the panel cutout dimensions align with the connector's flange or mounting style. Consider thermal management requirements if high current loads are anticipated during operation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 series of standard card edge connectors. The series offers various position counts and termination styles. The 307-024-440-268 specifically addresses the need for 24-position dual-row connectivity. It complements other series like the 357 and 387 which offer different heights or configurations.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC 307-024-460-202 for similar physical dimensions but verify contact plating differences. Check 307-024-557-101 for alternative termination or mounting styles. Ensure substitute parts maintain identical pitch and board thickness compatibility.
