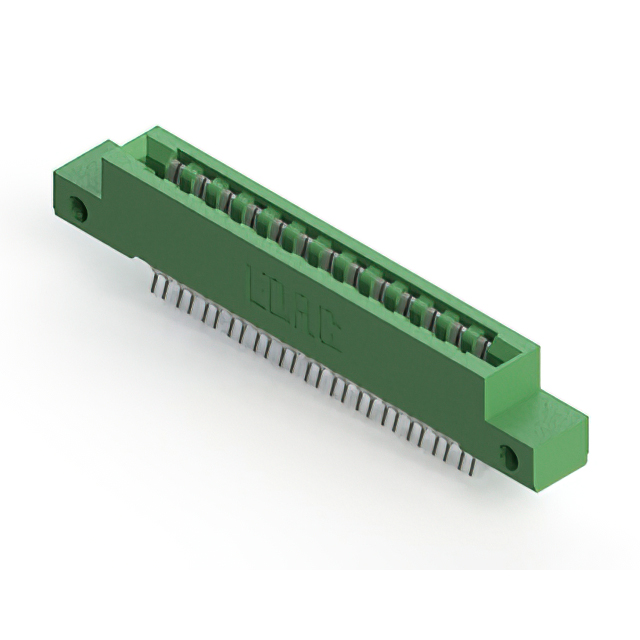

307-026-455-212 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 26POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 307-026-455-212
- Description：CONN EDGE DUAL FMALE 26POS 0.156
- Series：307
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：13
- Number of Positions：26
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 307-026-455-212
Edgeboard Connectors Overview
The EDAC Inc. 307-026-455-212 is a standard card edge connector featuring 26 positions arranged in two rows. It utilizes a 0.156 inch (3.96 mm) pitch and is designed for dual-edge mating with female contacts. The component employs surface mount termination and includes mounting holes with a diameter of 0.128 inches. The insulator is green, and the contacts are tin-plated copper alloy.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for secure board insertion
- Surface mount termination style for automated PCB assembly
- Integrated mounting holes for mechanical stability
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Computing hardware peripheral interfaces
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to confirm plating type and termination method. Ensure the selected variant matches the required board thickness and mounting orientation. Cross-reference the manufacturer datasheet for precise dimensional tolerances before finalizing procurement specifications.
Edgeboard Connectors Selection Notes
Select this connector when a dual-edge interface with surface mount capabilities is required. Confirm that the target printed circuit board accommodates the specified 0.128-inch mounting hole diameter. Validate that the tin plating meets the environmental and conductivity requirements for the intended application environment.
Edgeboard Connectors Part Context
This component belongs to the EDAC 307 series of standard card edge connectors. The series offers various position counts and termination styles. This specific model provides a mid-range position count suitable for moderate density interconnect applications requiring robust mechanical retention via surface mount pads.
Edgeboard Connectors Replacement Considerations
Direct substitutes within the same series include variants with different position counts or plating options. Verify compatibility with existing tooling and board layouts when considering alternative part numbers from the same manufacturer family.
