307-030-460-208

Edgeboard Connectors Overview

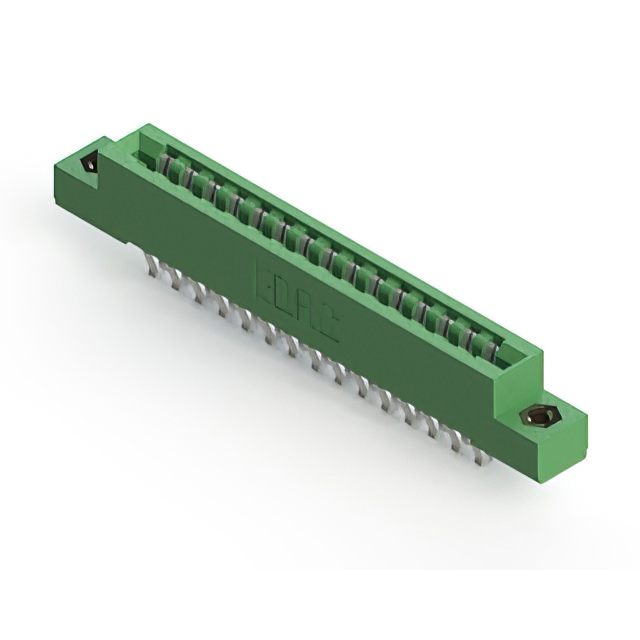

The EDAC Inc. 307-030-460-208 is a standard card edge connector receptacle from the 307 series, designed for PCB mounting with a straight orientation. It features 30 positions arranged in a dual-row configuration with a contact spacing of 3.96 mm (0.156 inches) and a row spacing of 5.08 mm (0.200 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Contacts are made of copper alloy with gold plating, rated for 5 A current. The housing is constructed from thermoplastic polyester, providing an insulation resistance of 5 GOhms. It operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row receptacle design accommodating standard double-sided card edge PCBs
• Low-profile insulator body constructed from thermoplastic polyester
• Gold-plated copper alloy contacts ensure reliable electrical connectivity
• Straight PCB mount style with solder termination for secure installation

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement instrumentation with modular card architectures
• Automotive electronics modules needing high-reliability interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, plating thickness, and mounting style compatibility. Ensure the target PCB thickness falls within the specified acceptance range of 1.37 mm to 1.78 mm. Confirm RoHS compliance status and environmental certifications required for the intended application region before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 30-position interface is required for 1.57 mm thick PCBs. The 3.96 mm pitch suits applications needing moderate density without excessive miniaturization. Consider the straight mounting orientation for panel or chassis integration where space allows linear alignment. Evaluate the 5 A current rating against total load requirements across all active pins to prevent thermal issues during operation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 series of standard card edge connectors, which offers various position counts and mounting configurations. The series is characterized by its durable thermoplastic housing and gold-plated contacts, suitable for general-purpose electronic interconnects. The 307-030-460-208 specifically addresses needs for medium-density dual-row connections in industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 307 series variants such as 307-024-460-202 or 307-036-540-201 if different pin counts are acceptable. Verify that any substitute maintains the same 3.96 mm pitch and 1.57 mm board thickness tolerance. Ensure mechanical dimensions and mounting hole patterns match the existing PCB layout to avoid redesign efforts.
