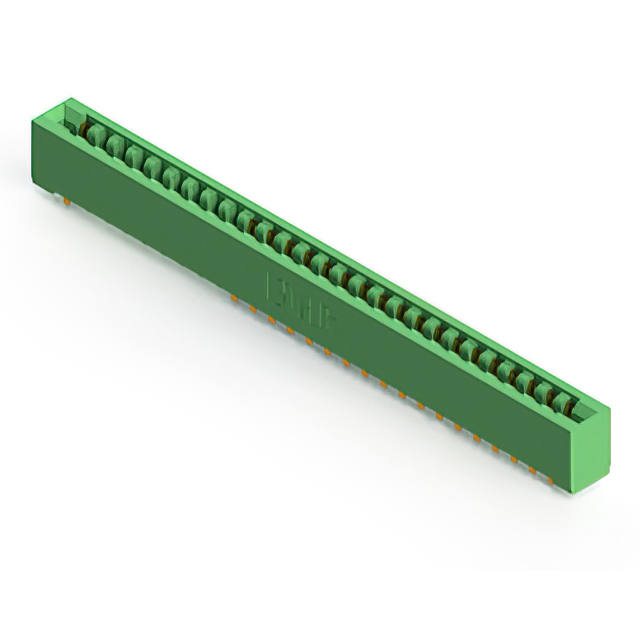

307-054-522-201

$10.27

Description：CONN EDGE DUAL FMALE 54POS 0.156
Series：307
Mfr：EDAC Inc.
Package：Box

SKU:fb9ef6b51a97 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

307-054-522-201 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 54POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 307-054-522-201

Description：CONN EDGE DUAL FMALE 54POS 0.156
Series：307
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：27
Number of Positions：54
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 307-054-522-201

307-054-522-201

Edgeboard Connectors Overview

The EDAC Inc. 307-054-522-201 is a standard card edge connector featuring 54 positions arranged in two rows. It utilizes a 3.96 mm (0.156 inch) contact spacing with a 5.08 mm row pitch. Designed for dual-edge card insertion, the unit accepts printed circuit boards with a nominal thickness of 1.57 mm. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. Rated for 5 A current, the connector operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

Dual-row configuration supporting high-density interconnects
Gold-plated copper alloy contacts for corrosion resistance
Low-profile thermoplastic insulator body design

Edgeboard Connectors Applications

Industrial control system backplanes
Telecommunications equipment modules
Computing hardware interface connections

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required dual-edge specification and pin count before ordering. Confirm compatibility with the target PCB thickness of 1.57 mm to ensure proper mechanical fit. Check regional availability as distribution status may vary by location. Ensure compliance with RoHS requirements if applicable to the end product assembly process.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count vertical connection is required for double-sided edge cards. The 3.96 mm pitch accommodates standard board layouts while maintaining robust electrical performance. Consider the operating temperature range and current rating against the application's thermal and power demands. Verify panel mounting requirements align with the connector's physical dimensions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 307 series of card edge connectors. The series offers various position counts and configurations for different density needs. The 307-054-522-201 specifically addresses applications requiring 54 contacts in a dual-row arrangement. It represents a standardized solution for connecting edge-mounted circuit boards in electronic assemblies.
