Edgeboard Connectors Overview

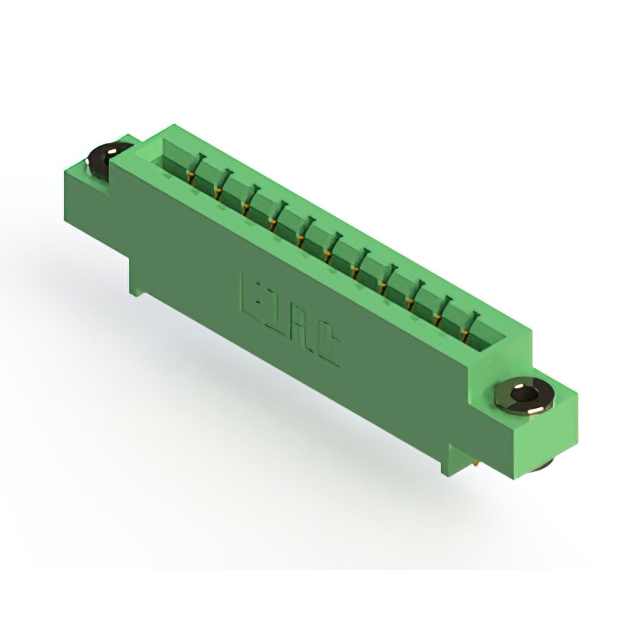

The EDAC Inc. part number 333-011-521-603 is a standard card edge connector belonging to the EDAC product family. It features an 11-position configuration with a single row of contacts designed for vertical board insertion. The connector utilizes PC tail termination methods, providing a contact tail length of 0.150 inches (3.81mm). This component serves as a reliable interface solution for connecting printed circuit boards within electronic assemblies requiring standardized interconnect specifications.

Edgeboard Connectors Feature Summary

• Single row contact arrangement for simplified PCB integration
• PC tail termination style ensuring secure board mounting
• Standardized dimensional profile for compatibility with mating edge cards

Edgeboard Connectors Applications

• General purpose electronic equipment interconnection
• Industrial control system module interfaces
• Communication hardware backplane connections

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer datasheet and official component documentation to confirm mechanical dimensions, material composition, and environmental ratings prior to integration. Ensure that the selected connector meets all relevant industry standards and regulatory requirements applicable to the target application environment. Cross-reference the part number with authorized distributor catalogs to validate current availability and supply chain stability.

Edgeboard Connectors Selection Notes

Choose this connector when a single-row, 11-position interface is required for direct PCB mounting. Consider the PC tail termination method for through-hole assembly processes. Evaluate the physical space constraints on the target board to ensure the 0.150-inch tail length fits within the design envelope. Confirm that the mating edge card specifications align with the connector's contact geometry and spacing requirements.

Edgeboard Connectors Part Context

This component belongs to the broader category of D-Sub and card edge connectors manufactured by EDAC Inc. The company specializes in providing diverse interconnect solutions for various industrial and commercial applications. This specific model represents a standard density option within their portfolio, focusing on reliable signal transmission and mechanical stability for embedded systems.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides or authorized distributor cross-reference tools to identify compatible alternatives. Verify that any substitute part matches the original pin count, row configuration, and termination style to maintain mechanical and electrical integrity without redesigning the host PCB layout.
