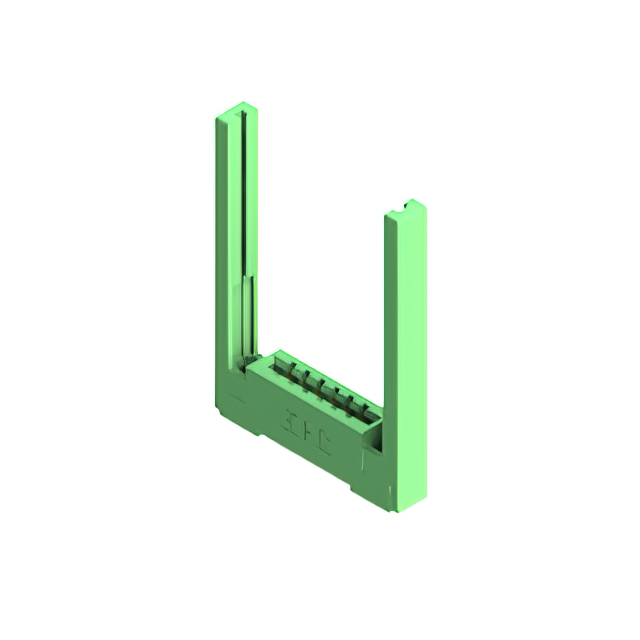

337-006-500-168 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 6POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 337-006-500-168
- Description：CONN EDGE SGL FMALE 6POS 0.156
- Series：337
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：6
- Number of Positions：6
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：Card Guides
- Mounting Type：Through Hole
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 337-006-500-168
Edgeboard Connectors Overview
The EDAC Inc. 337-006-500-168 is a standard single-row card edge connector designed for vertical through-hole mounting. It features six positions with a 3.96 mm (0.156 inch) pitch and accepts board thicknesses between 1.37 mm and 1.78 mm. The contacts are made of copper alloy with gold plating, rated for 3 A current at 5 GOhms insulation resistance. Operating temperatures range from -40°C to +105°C, housed in green thermoplastic polyester.
Edgeboard Connectors Feature Summary
- Vertical through-hole mounting configuration
- Gold-plated copper alloy contacts
- Thermoplastic polyester housing
Edgeboard Connectors Applications
- Industrial control systems
- Communication equipment
- Medical devices
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, termination style, and flange options. Ensure compatibility with target PCB thickness and operating temperature requirements before procurement. Cross-reference manufacturer part numbers with distributor listings to avoid ordering errors.
Edgeboard Connectors Selection Notes
Select this component for applications requiring vertical card edge connections with high reliability. Consider the 3.96 mm pitch and 3 A rating for suitable signal or power transmission needs. Verify that the through-hole termination method aligns with the assembly process and that the housing material meets environmental standards.
Edgeboard Connectors Part Context
This part belongs to the EDAC 337 Series, which provides a wide range of standard card edge connectors. The series offers various position counts, termination styles, and mounting options to support diverse electronic interconnection requirements across multiple industries.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for compatible alternatives within the 337 series. Verify mechanical dimensions and electrical ratings match the original design specifications before replacing.
