337-015-544-108

Edgeboard Connectors Overview

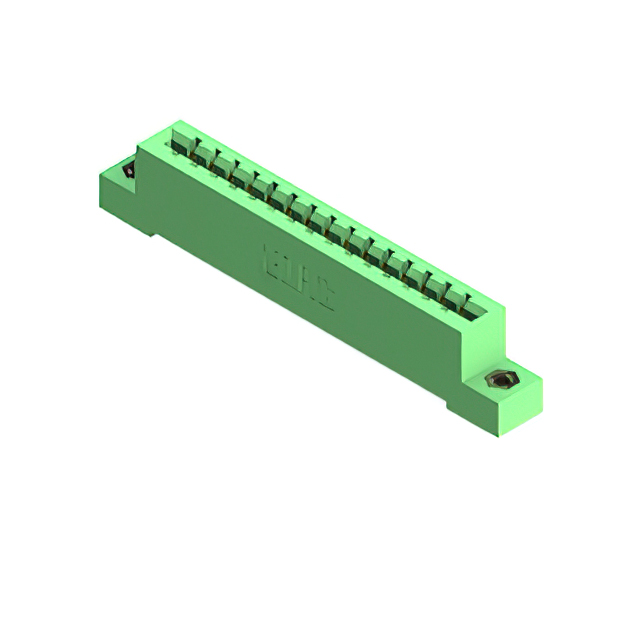

The EDAC Inc. 337-015-544-108 is a standard single-edge card edge connector socket designed for through-hole mounting. It features 15 positions with a 3.96 mm pitch and supports PCB thicknesses of 1.57 mm. The contacts are made of copper alloy with gold plating, rated for 3 A current. Operating temperature ranges from -40°C to +105°C. Insulation resistance is 5 GOhms, and the housing is thermoplastic polyester.

Edgeboard Connectors Feature Summary

• Flush mount design with top opening and threaded insert
• Single row configuration for edge board insertion
• Gold-plated copper alloy contacts for reliable connection

Edgeboard Connectors Applications

• Industrial control systems
• Medical equipment interconnects
• Agricultural technology hardware

Edgeboard Connectors Procurement Notes

Verify part number accuracy against official EDAC documentation before ordering. Confirm RoHS compliance status and specific packaging quantities directly with authorized distributors or the manufacturer. Ensure compatibility with target PCB stack-up and mounting requirements.

Edgeboard Connectors Selection Notes

Select this component for applications requiring vertical through-hole mounting with flush installation capabilities. Consider the 3.96 mm pitch and single-row layout for space-constrained designs. Verify thermal ratings and contact material suitability for the intended electrical load.

Edgeboard Connectors Part Context

This model belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and mounting styles. This specific variant provides a robust solution for connecting single-edge circuit boards in demanding environments.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other EDAC 337 series models if pin count or mounting style differences are acceptable.
