337-015-559-603

Edgeboard Connectors Overview

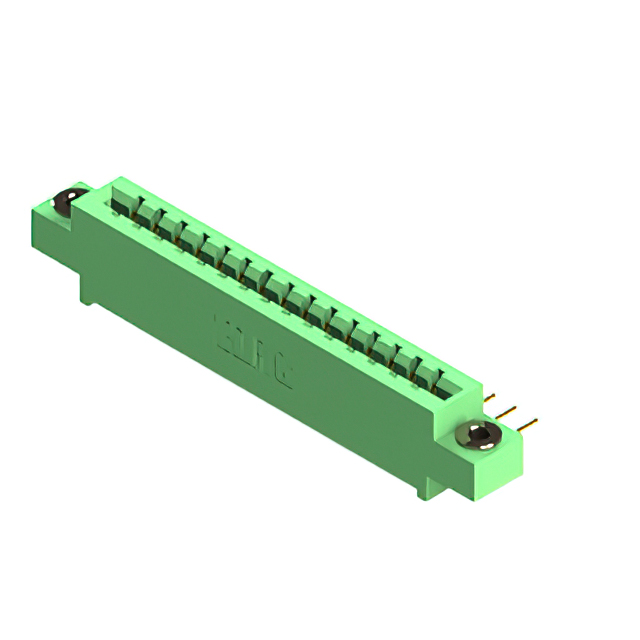

The EDAC Inc. 337-015-559-603 is a standard card edge connector designed for vertical through-hole mounting. It features 15 positions with a single row and 0.156-inch (3.96mm) contact spacing. The female contacts are gold-plated to ensure reliable signal transmission. The unit accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with a thermoplastic polyester insulator, the connector operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical through-hole termination method for secure PCB attachment
• Gold-plated female contacts for enhanced conductivity and corrosion resistance
• High-profile insulator body design for structural stability
• Thermoplastic polyester housing material for durability

Edgeboard Connectors Applications

• Signal communication between mother and daughter boards
• Power connection interfaces in electronic assemblies
• Extender board interconnections
• General-purpose standard card edge applications

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 15-position configuration and vertical orientation. Confirm compatibility with the target PCB thickness of 0.062 inches. Ensure the gold plating specification meets the application's conductivity requirements. Check for any regional distribution restrictions or RoHS compliance documentation before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge connector is required for 0.156-inch pitch applications. It is suitable for environments requiring operation up to 105°C. Consider the high-profile body for adequate clearance. Verify that the 15-position count aligns with the circuit design needs. Ensure the through-hole mounting style fits the assembly process.

Edgeboard Connectors Part Context

This component belongs to the EDAC 337 series of standard card edge connectors. The series provides engineered solutions for power and signal connections. These connectors are widely used in industrial and commercial electronics. The 337 series emphasizes reliability and quality engineering for various interconnect scenarios.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference pin counts, pitch, and mounting styles if seeking alternatives.
