341-014-500-108

Edgeboard Connectors Overview

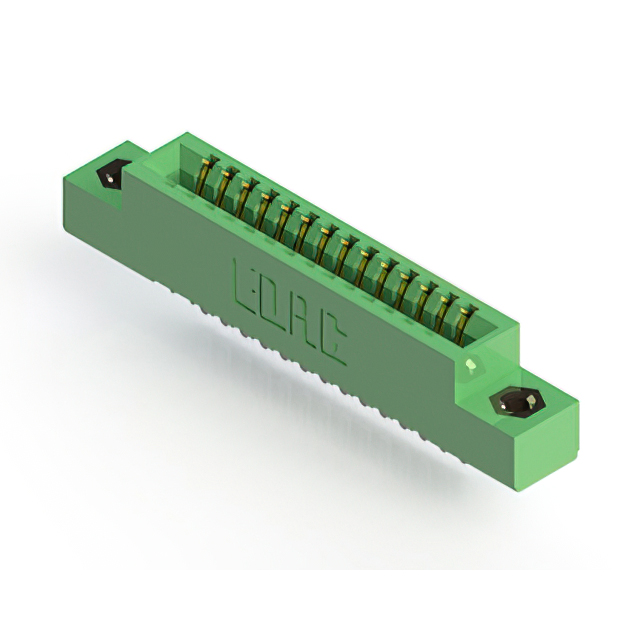

The EDAC Inc. model 341-014-500-108 is a standard card edge connector designed for reliable signal transmission in electronic assemblies. This component features 14 positions with a 2.54 mm pitch, accommodating single-edge cards up to 1.57 mm thick. It utilizes a panel mount installation style with a straight orientation and employs wire lead termination for secure circuit board attachment. The contacts are constructed from copper alloy with gold plating to ensure durability and low contact resistance. Rated for 3 A current, the connector operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts provide corrosion resistance and stable electrical performance.
• Thermoplastic polyester housing ensures mechanical stability and thermal endurance.
• Panel mount configuration allows for direct integration into chassis or enclosure structures.

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify that the specific suffix matches the required termination type and mounting style. Confirm compliance with RoHS directives if environmental regulations apply. Ensure the receiving facility has the correct handling procedures for sensitive electronic components. Cross-reference the manufacturer datasheet for precise dimensional tolerances before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a single-edge card interface with a 2.54 mm pitch is required. The 14-position count suits applications needing moderate I/O density. Verify that the PCB thickness falls within the specified 1.57 mm limit. Consider the straight panel mount orientation for space-constrained vertical installations.

Edgeboard Connectors Part Context

This component belongs to the EDAC 341 series of standard card edge connectors. The series provides various position counts and termination options to support diverse electronic design requirements. The 341-014 variant specifically addresses needs for compact, high-reliability connections in professional electronics.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC ordering guide for compatible alternatives within the 341 series. Substitutes must match the 2.54 mm pitch and 14-position configuration. Verify that any replacement part maintains identical termination and mounting specifications.
