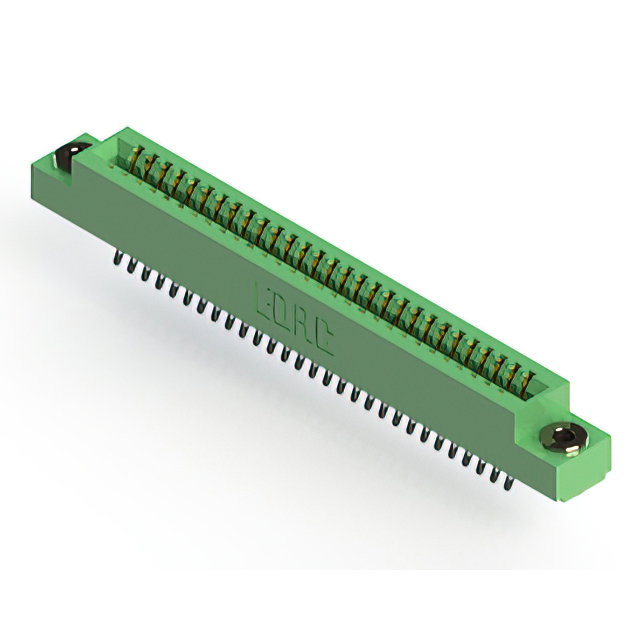

341-058-555-203 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 58POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 341-058-555-203
- Description：CONN EDGE DUAL FMALE 58POS 0.100
- Series：341
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：29
- Number of Positions：58
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Through Hole
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 341-058-555-203
Edgeboard Connectors Overview
The EDAC Inc. 341-058-555-203 is a dual-edge female card edge connector with 58 positions and a 0.100 inch (2.54mm) pitch. It features gold-plated contacts, a green thermoplastic polyester housing, and a half-beam contact type. Designed for through-hole termination, it supports board thicknesses of 0.054 to 0.070 inches. The unit operates within a temperature range of -40°C to +105°C and includes flange mounting options.
Edgeboard Connectors Feature Summary
- Dual-edge female receptacle design for non-specified card insertion
- Gold-plated half-beam contacts ensure reliable signal transmission
- Thermoplastic polyester insulation provides structural stability
- Through-hole termination facilitates secure PCB integration
Edgeboard Connectors Applications
- Industrial control system interconnections
- Telecommunications equipment backplanes
- Consumer electronics module connections
- Medical device circuit board interfaces
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the official EDAC 341 Series Ordering Guide to confirm exact mechanical dimensions and flange characteristics. Ensure compatibility with target PCB stack-up and verify RoHS compliance status prior to final procurement approval.
Edgeboard Connectors Selection Notes
Select this component when a 58-position dual-edge interface with 2.54mm spacing is required. Confirm that the target card thickness falls within the specified 0.054 to 0.070 inch range. Validate that the operating environment remains within the -40°C to +105°C thermal limits for long-term reliability.
Edgeboard Connectors Part Context
This part belongs to the EDAC 341 series, which offers standard card edge connectors for general-purpose applications. The series provides various position counts and termination styles, supporting diverse electronic assembly needs across multiple industries with consistent quality standards.
Edgeboard Connectors Replacement Considerations
Consult the EDAC 341 Series Ordering Guide for direct substitutes with different pin counts or termination types. Cross-reference mechanical drawings to ensure flange and mounting hole alignments match existing panel constraints before substitution.
