341-088-522-201

Edgeboard Connectors Overview

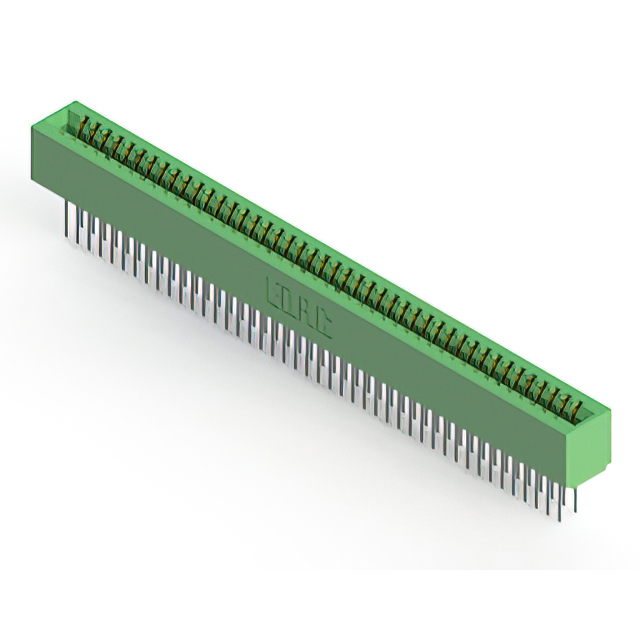

The EDAC Inc. 341-088-522-201 is a dual-edge female card edge connector featuring 88 positions arranged in two rows of 44. It utilizes a 0.100" (2.54mm) pitch and accepts board thicknesses between 0.054" and 0.070". The contacts are gold-plated copper alloy with a 10.0µin thickness, terminated via solder. Designed for panel mount installation, it operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge receptacle design for non-specified double-sided cards
• Gold-plated half-bead contact termination for reliable signal integrity
• Panel mount configuration with threaded insert flange features

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific flange thread size and mounting hole pattern against the mechanical drawing before integration. Confirm that the target PCB thickness falls within the specified 0.054" to 0.070" range to ensure proper contact engagement. Check RoHS compliance status if required by project specifications.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-edge interface is required with standard 0.100" spacing. Ensure the application environment stays within the -40°C to 105°C operating range. Consider the panel mount style if space constraints prevent through-hole or surface-mount alternatives.

Edgeboard Connectors Part Context

This part belongs to the EDAC 341 series of standard card edge connectors. The series offers various position counts and termination styles, all sharing common electrical characteristics and material standards. The 341 series is widely used in general-purpose electronic assemblies requiring robust mechanical retention.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 341 series parts with matching pin counts and pitch, such as 341-050-500-207 for lower density needs. Cross-brand replacements require verifying identical pitch, board thickness tolerance, and contact plating specifications.
