345-005-520-608 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 5POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 345-005-520-608
- Description：CONN EDGE SINGLE FML 5POS 0.100
- Series：345
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：5
- Number of Positions：5
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 345-005-520-608
Edgeboard Connectors Overview

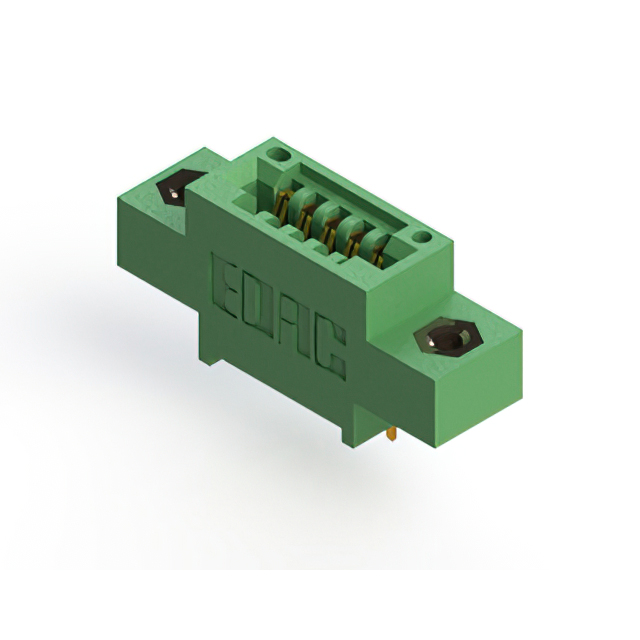

The EDAC Inc. 345-005-520-608 is a standard card edge connector socket designed for vertical through-hole mounting. It features 5 positions with a 0.100-inch (2.54 mm) pitch and accepts board thicknesses between 0.054 and 0.070 inches. The contacts are copper alloy with gold plating, rated for 3 A current. The housing is green thermoplastic polyester, operating from -40°C to 105°C.
Edgeboard Connectors Feature Summary
- Vertical through-hole mounting configuration for secure PCB integration
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Green thermoplastic polyester insulation provides thermal stability
Edgeboard Connectors Applications
- General electronic circuit interconnections
- Industrial control systems
- Consumer electronics assemblies
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact contact finish, flange options, and packaging quantities. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference RoHS compliance status with current regulatory requirements for the intended market.
Edgeboard Connectors Selection Notes
Select this component when a low-count, single-row female connector is required for vertical board insertion. Confirm that the 5-position count matches the design schematic. Verify that the 2.54 mm pitch aligns with the mating card edge guide dimensions and that the through-hole termination method suits the manufacturing process.
Edgeboard Connectors Part Context
This part belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and mounting styles. The 345-005 variant specifically addresses applications requiring minimal I/O points in a compact footprint while maintaining industrial-grade durability and electrical performance standards.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for direct equivalents. Generic pin-compatible alternatives may lack identical flange or plating specifications. Verify mechanical envelope and electrical ratings before substituting.
