345-010-541-403

Edgeboard Connectors Overview

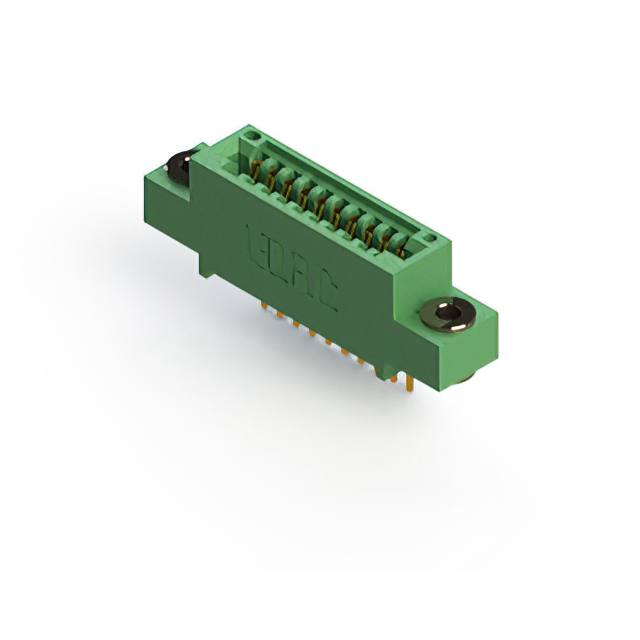

The EDAC Inc. 345-010-541-403 is a standard card edge connector from the 345 series, designed for single-edge board applications. It features 10 positions with a 0.100-inch (2.54mm) contact spacing. The connector utilizes female contacts made of copper alloy with gold plating and wire wrap termination. It is constructed with a green thermoplastic polyester housing and supports PCB thicknesses of 1.57mm. The component operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-edge configuration with 10-position female contacts
• Gold-plated copper alloy contacts for reliable signal transmission
• Wire wrap termination method for secure circuit connection
• Thermoplastic polyester housing providing thermal stability

Edgeboard Connectors Applications

• Standard card edge interconnections
• Electronic module mounting
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct contact type and termination style. Confirm RoHS compliance status and environmental ratings prior to integration. Cross-reference the part number with official EDAC documentation to validate availability and technical specifications for your specific application requirements.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, 10-position interface is required with wire wrap termination. Ensure the host PCB thickness aligns with the specified 1.57mm requirement. Consider the operating temperature range and material compatibility with surrounding components during the design phase to guarantee long-term reliability.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series, which offers various configurations for card edge applications. The series provides standardized dimensions and contact spacing to facilitate interoperability across different electronic assemblies. This specific model represents a standard vertical through-hole option within that product family.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC replacement guide for direct substitutes. Verify mechanical fit and electrical characteristics before adopting alternative part numbers.
