345-012-524-612

Edgeboard Connectors Overview

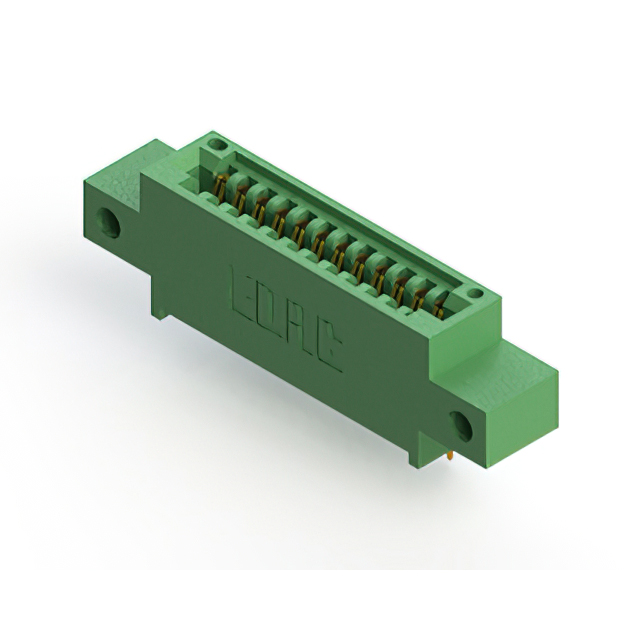

The EDAC Inc. 345-012-524-612 is a single-row card edge connector with 12 positions and a 0.100" (2.54mm) pitch. It features female contacts with gold plating, designed for through-hole termination. The unit accepts printed circuit boards with a nominal thickness of 0.062" (1.57mm). Constructed with copper alloy contacts and thermoplastic insulation, it operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-edge configuration with female contact type
• Gold-plated copper alloy contacts for reliable signal transmission
• Through-hole mounting with standard 0.100" pitch spacing

Edgeboard Connectors Applications

• General-purpose electronic interconnects
• Industrial control system board connections
• Consumer electronics module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC datasheet to ensure compatibility with required board thicknesses and termination styles. Confirm RoHS compliance status and environmental certifications prior to integration into regulated assemblies.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 12 positions is required. Ensure the target PCB thickness matches the 0.062" specification. Consider the through-hole mounting style and vertical orientation relative to the mating board layout constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series, which specializes in standard card edge connectors. The series offers various position counts and row configurations, utilizing consistent 0.100" pitch dimensions across models to maintain interchangeability within design architectures.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 345 series variants such as 345-012-524-602 or 345-012-524-603 for similar form factors. Verify that alternative parts match the exact pin count, pitch, and mounting orientation before substitution.
