345-024-524-688

Edgeboard Connectors Overview

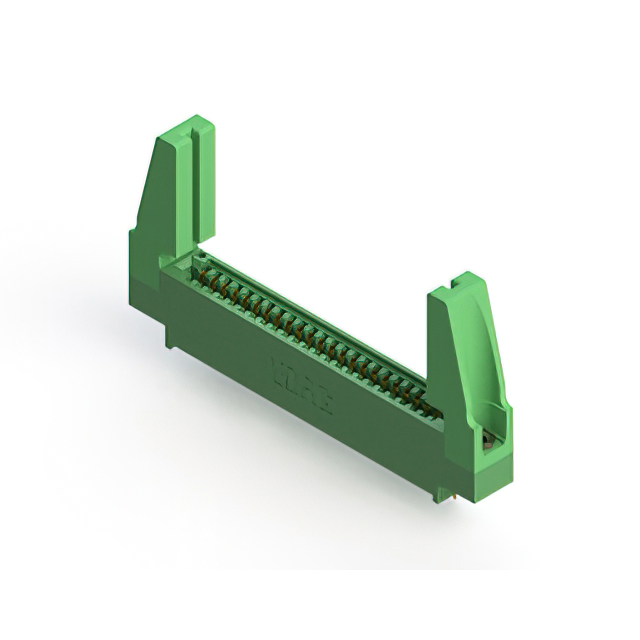

The EDAC Inc. 345-024-524-688 is a standard card edge connector designed for single-edge board applications. It features 24 positions with a 0.100-inch (2.54mm) pitch and accepts PCB thicknesses between 0.054 and 0.070 inches. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. Rated for 3A current, it operates within a temperature range of -40°C to +105°C. This vertical, through-hole component includes mounting flanges with top-mounting openings.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for reliable signal transmission
• Gold-plated copper alloy contacts ensure corrosion resistance and conductivity
• Integrated mounting flanges facilitate secure panel installation
• Vertical orientation supports standard through-hole PCB assembly

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment interfaces
• Computing and data storage hardware modules
• Medical device internal circuit connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact physical dimensions and plating specifications. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS compliance status directly with the manufacturer or authorized distributor. Validate that the selected variant matches the required current rating and operating temperature range for the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 24-position interface is required for vertical mounting. Consider the 0.100-inch pitch constraint for trace routing density. Evaluate the need for integrated flanges versus other mounting styles. Ensure the host board thickness falls within the specified acceptance range to guarantee proper contact engagement and mechanical stability during operation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and termination options. The 345-024-524-688 specifically denotes a 24-position unit with gold plating and flanged housing. It serves as a standardized solution for connecting edge-board modules to main system backplanes or carrier boards in electronic assemblies.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts from the same EDAC 345 family if pin count variations are acceptable. Verify identical pitch, current ratings, and mounting configurations before substituting. Consult official EDAC interchangeability guides for confirmed equivalent part numbers.
