345-030-544-658

Edgeboard Connectors Overview

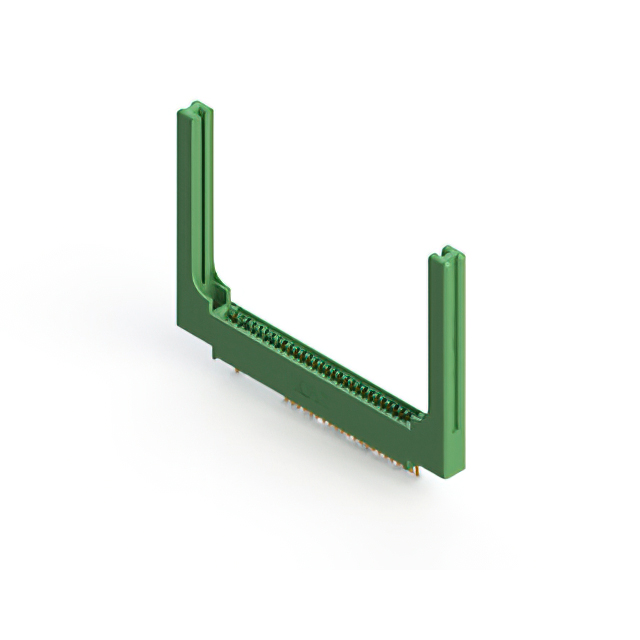

The EDAC Inc. 345-030-544-658 is a standard card edge connector designed for single-row applications. It features 30 positions with a female contact type and a 0.100-inch (2.54mm) pitch. The connector utilizes a through-hole termination method and is constructed with copper alloy contacts finished with gold plating. The housing is made of green thermoplastic polyester, providing insulation and structural integrity. This component supports non-specified single-edge cards and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-row female configuration for non-specified card edge applications
• Through-hole termination ensures secure board mounting
• Gold-plated copper alloy contacts provide reliable conductivity
• Thermoplastic polyester housing offers thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing compliant connection solutions
• Agricultural technology hardware exposed to harsh environments
• General-purpose electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and flange configurations. Ensure compatibility with target PCB stack-up and card thickness specifications before finalizing procurement orders. Cross-reference datasheet revisions to confirm current RoHS compliance status.

Edgeboard Connectors Selection Notes

Select this model for applications requiring a single-row interface with 30 contacts. Confirm that the target printed circuit board layout accommodates the through-hole termination style. Verify that the mechanical constraints allow for the specified panel or vertical mounting orientation associated with this series.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors. The series provides various position counts and row configurations to support diverse interconnect needs. Components in this family share common design principles regarding contact material and housing composition.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Generic equivalents may not match the specific flange dimensions or termination requirements of this component.
