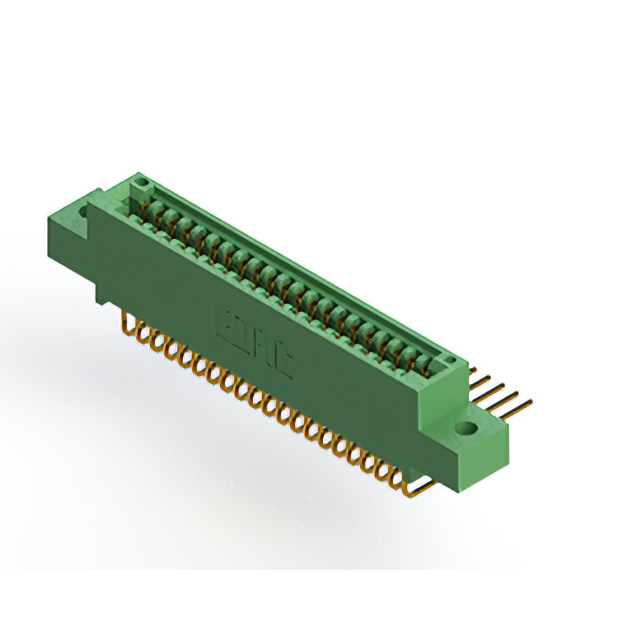

345-042-559-502 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 42POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 345-042-559-502
- Description：CONN EDGE DUAL FMALE 42POS 0.100
- Series：345
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：21
- Number of Positions：42
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 345-042-559-502
Edgeboard Connectors Overview
The EDAC Inc. 345-042-559-502 is a dual-sided card edge connector designed for through-hole mounting. It features 42 positions with a 0.100-inch (2.54mm) pitch and utilizes female contact types. The connector supports board thicknesses ranging from 0.054 to 0.070 inches. Constructed with copper alloy contacts featuring gold plating, it ensures reliable signal transmission. The housing is made of green thermoplastic polyester, rated for operation between -40°C and 105°C.
Edgeboard Connectors Feature Summary
- Dual-sided female contact configuration for secure board insertion
- Gold-plated copper alloy contacts for enhanced conductivity
- Through-hole termination method for robust PCB attachment
Edgeboard Connectors Applications
- Industrial control systems requiring durable interconnects
- Telecommunications equipment signal routing
- Automotive electronics module connections
Edgeboard Connectors Procurement Notes
Verify the specific part number against official EDAC documentation to confirm compatibility with target board thicknesses and pin counts. Ensure that the procurement channel provides genuine components with valid RoHS compliance certificates. Cross-reference the manufacturer's datasheet for accurate mechanical dimensions and thermal ratings before finalizing supply chain agreements.
Edgeboard Connectors Selection Notes
Select this component when a dual-sided connection with a standard 2.54mm pitch is required. Consider the through-hole installation style for applications needing high mechanical stability. Evaluate the operating temperature range and material composition to ensure suitability for the intended environmental conditions and electrical load requirements.
Edgeboard Connectors Part Context
This component belongs to the EDAC 345 series of standard card edge connectors. The series is characterized by its versatility in various electronic assemblies, offering reliable performance across multiple industries. The specific model integrates standard spacing with durable materials to meet common industry interface specifications.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides or distributor cross-reference tools for verified compatible alternatives. Ensure any substitute maintains identical pitch, position count, and mounting characteristics.
