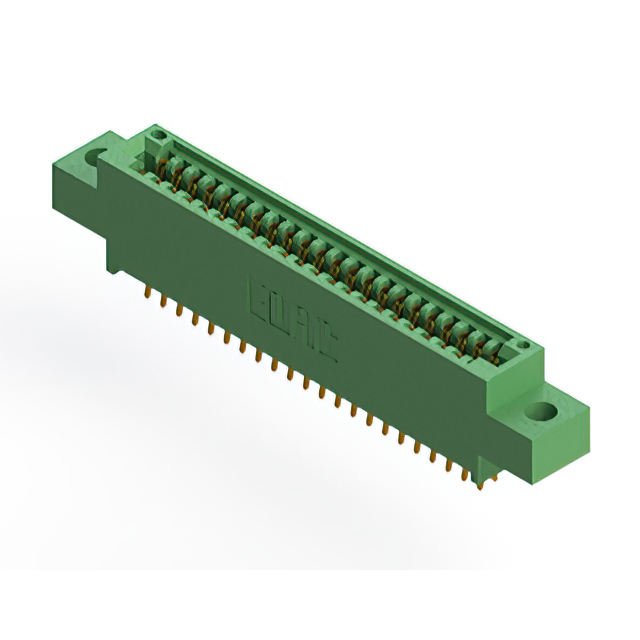

345-044-556-804 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 44POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 345-044-556-804
- Description：CONN EDGE DUAL FMALE 44POS 0.100
- Series：345
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：22
- Number of Positions：44
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 345-044-556-804
Edgeboard Connectors Overview
The EDAC Inc. 345-044-556-804 is a standard card edge connector featuring 44 positions with a 2.54 mm (0.100 inch) pitch. Designed for through-hole vertical mounting, it utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. The component supports a 3 A current rating and accommodates board thicknesses of 1.57 mm. It is classified as a dual female non-specified edge connector within the 345 series.
Edgeboard Connectors Feature Summary
- Dual female contact configuration for non-specified card edge applications
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Vertical through-hole mounting style with flange features
Edgeboard Connectors Applications
- General purpose electronic interconnect systems
- Industrial control panel assemblies
- Computing and data storage hardware
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer datasheet to confirm terminal type and flange configuration. Ensure compatibility with target PCB stack-up dimensions and mating card specifications before procurement. Cross-reference RoHS compliance status with current regulatory requirements for the intended market.
Edgeboard Connectors Selection Notes
Select this component when a 44-position vertical interface is required. Confirm that the 2.54 mm pitch aligns with the mating card design. Verify that the through-hole termination method matches the manufacturing process capabilities and that the 3 A current rating meets the circuit load requirements.
Edgeboard Connectors Part Context
This part belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and termination options. The 345-044-556-804 specifically provides a robust solution for high-density vertical connections in commercial and industrial electronics where durability and precise alignment are critical.
Edgeboard Connectors Replacement Considerations
Consult official EDAC documentation for direct substitutes within the 345 series. Verify pin count, pitch, and mounting orientation match exactly. No alternative part numbers are confirmed in public sources.
