345-074-555-508

Edgeboard Connectors Overview

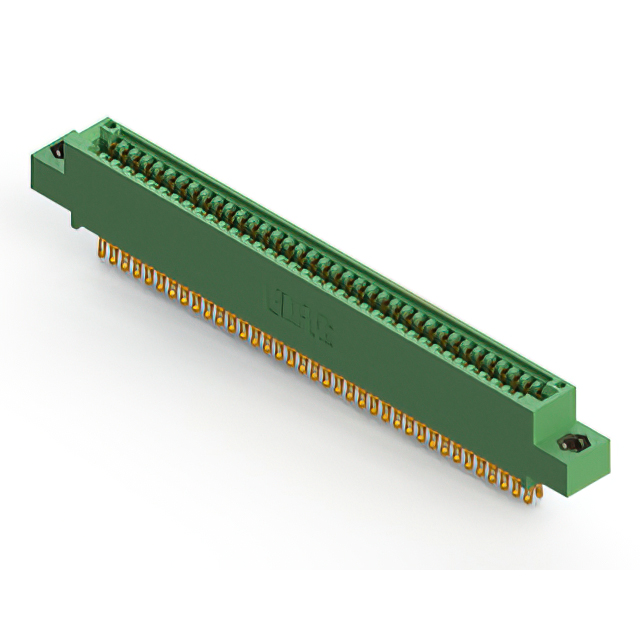

The EDAC Inc. 345-074-555-508 is a standard card edge connector featuring a .100 inch (2.54mm) pitch and 74 positions. It utilizes a dual female contact configuration with gold plating on copper alloy terminals rated for 3A current. The housing is constructed from thermoplastic polyester, supporting PCB thicknesses of 1.57mm. Designed for through-hole mounting, this component includes #4-40 unified threaded inserts for secure panel installation. It operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual female contact design ensures reliable signal transmission for single-row card edge applications.
• Thermoplastic polyester housing provides structural integrity and chemical resistance.
• Gold-plated copper alloy contacts maintain low contact resistance and corrosion protection.
• Integrated flanges with threaded inserts facilitate stable vertical panel mounting.

Edgeboard Connectors Applications

• Industrial control system backplanes
• Medical interconnect equipment
• Agricultural technology instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm mechanical variations such as flange type or termination style. Ensure compatibility with target PCB thickness and mounting constraints before procurement. Confirm RoHS compliance status via the manufacturer datasheet. Check lead time availability as distribution may vary by region.

Edgeboard Connectors Selection Notes

Select this model when a 74-position, 2.54mm pitch connector with vertical panel mounting is required. The dual female configuration suits single-sided card edge boards. Consider the 3A current rating and operating temperature range for environmental suitability. Verify that the board thickness falls within the specified 1.57mm tolerance for optimal contact engagement.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series, which specializes in standard card edge connectors. The series offers various position counts and mounting options tailored for robust industrial and medical applications. The 345-074-555-508 variant specifically addresses high-density connectivity needs with secure panel integration capabilities.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other EDAC 345 series variants only if pin count and pitch match exactly. Consult manufacturer engineering for direct replacements.
