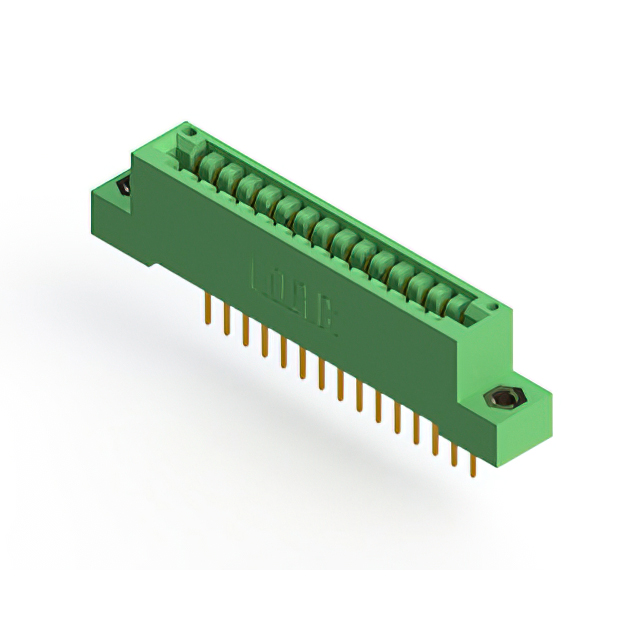

346-015-522-107

$6.93

Description：CONN EDGE SGL FMALE 15POS 0.125
Series：346
Mfr：EDAC Inc.
Package：Box

SKU:8257eba1e4e2 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

346-015-522-107 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 15POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 346-015-522-107

Description：CONN EDGE SGL FMALE 15POS 0.125
Series：346
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：15
Number of Positions：15
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.125" (3.18mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 346-015-522-107

346-015-522-107

Edgeboard Connectors Overview

The EDAC Inc. 346-015-522-107 is a standard card edge connector from the 346 series, designed for single-row applications. It features 15 positions with a pitch of 3.18 mm (0.125 inches). The component utilizes gold-plated contacts and a thermoplastic polyester housing. Rated for 3 A current, it supports PCB thicknesses of 1.57 mm. Operating temperatures range from -55°C to +105°C, ensuring reliability in demanding environments.

Edgeboard Connectors Feature Summary

Single-row female connector configuration
Gold-plated contact finish for corrosion resistance
Thermoplastic polyester housing material

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Automotive electronics

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with target PCB thickness and mounting orientation requirements before procurement.

Edgeboard Connectors Selection Notes

Select this model for applications requiring a single-row interface with a 0.125-inch pitch. Confirm that the 3 A current rating and thermal performance align with system power distribution needs.

Edgeboard Connectors Part Context

This component belongs to the EDAC 346 series of standard card edge connectors. The series provides various position counts and termination options for board-to-board or backplane interconnections.
