346-036-541-203

Edgeboard Connectors Overview

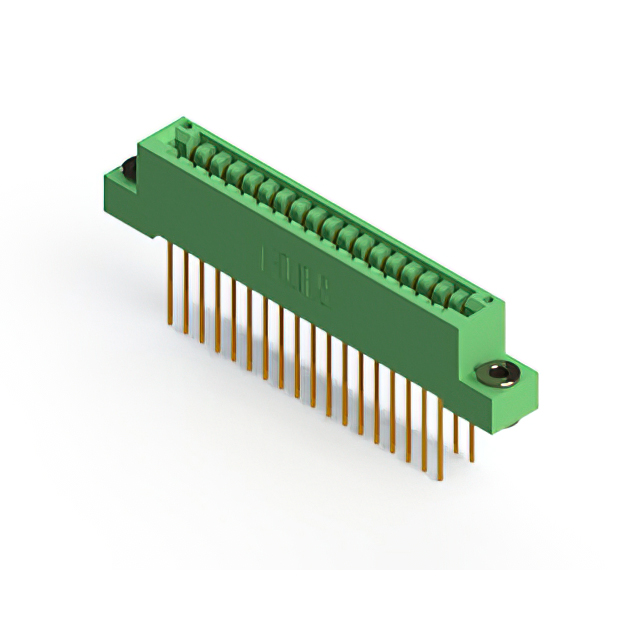

The EDAC Inc. model 346-036-541-203 is a standard card edge connector receptacle featuring 36 positions arranged in a dual-row configuration. It utilizes a 3.18 mm (0.125 inch) contact spacing and is designed for a board thickness of 1.57 mm. The connector employs gold-plated copper alloy contacts with a wire wrap termination type. It operates within a temperature range of -55°C to +125°C, supports a current rating of 3 A, and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure board insertion
• Gold-plated contacts ensure reliable signal transmission
• Wire wrap termination provides robust mechanical stability

Edgeboard Connectors Applications

• High-temperature industrial control systems
• Medical interconnect solutions
• Agricultural technology equipment

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB dimensions and thermal requirements before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Confirm RoHS compliance status through verified datasheets.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance and durable wire wrap connections are required. The dual-row layout maximizes I/O density within constrained spaces. Verify that the 3.18 mm pitch aligns with existing board designs. Consider the green insulator color for visual identification during assembly processes.

Edgeboard Connectors Part Context

This part belongs to the EDAC 346 series of standard card edge connectors. The series is engineered for demanding environments, including medical and agricultural applications. It represents a specialized solution for high-reliability interconnect needs where standard connectors may fail under thermal stress.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 346 series variants with matching position counts and termination types. Verify pinout compatibility and physical dimensions before swapping. Consult official cross-reference lists for approved alternatives.
