357-010-401-104

Edgeboard Connectors Overview

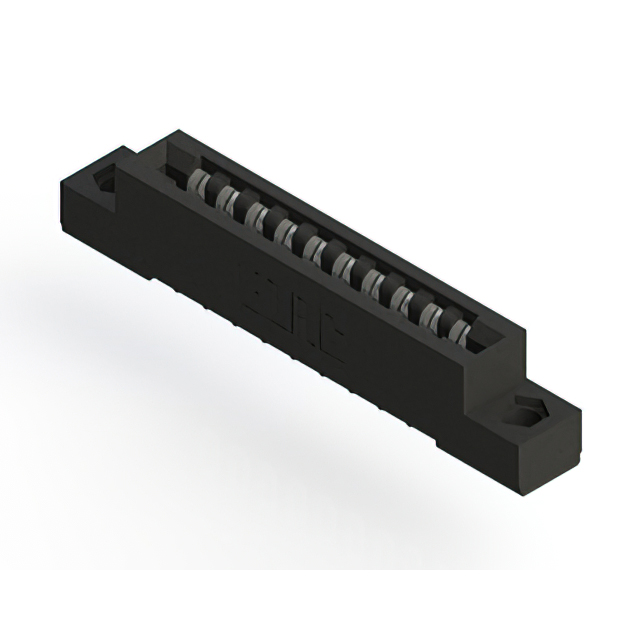

The EDAC Inc. 357-010-401-104 is a standard card edge connector from the 357 series, designed for vertical board-to-board connections. It features a dual female configuration with 20 positions and a 0.156-inch (3.96 mm) pitch. The connector utilizes tin-plated contacts and is constructed from black thermoplastic polyester insulation. It supports PCB thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm) and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Vertical mounting orientation for standard panel integration
• Tin-plated contacts providing reliable electrical conductivity
• Thermoplastic polyester housing for structural stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Medical device circuit board assemblies
• Automotive electronic module connections

Edgeboard Connectors Procurement Notes

Verify specific plating requirements as this model specifies tin contacts, which differ from gold-plated variants in the same series. Confirm that the target PCB thickness falls within the 1.37 mm to 1.78 mm operational window. Ensure compatibility with the 3.96 mm pitch layout during mechanical design. Check regional availability constraints as distribution may vary by location.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with tin plating is required for vertical applications. The 20-position count suits moderate-density interfaces. Consider the 357 series robustness for harsh environments. Verify that the operating temperature range meets system thermal specifications. Compare against gold-plated alternatives if corrosion resistance is critical.

Edgeboard Connectors Part Context

This part belongs to the EDAC 357 series of standard card edge connectors, known for durability in demanding environments. The series offers various position counts and plating options. The 357-010-401-104 specifically addresses needs for dual-edge connectivity with tin contacts, distinguishing it from single-edge or gold-plated counterparts within the broader product family.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other 357 series parts with identical 20-position dual female configurations and tin plating, such as 357-010-401-103 if available. Verify that any replacement maintains the 3.96 mm pitch and vertical mounting style to ensure mechanical fit.
