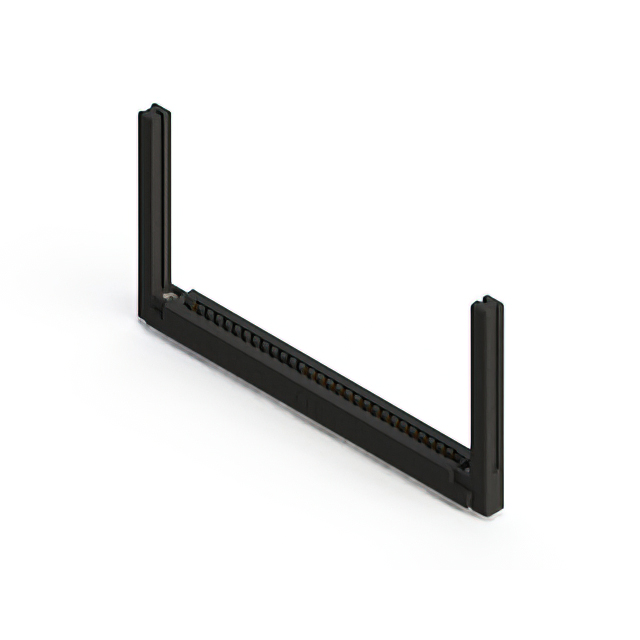

357-029-527-158 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 29POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 357-029-527-158
- Description：CONN EDGE SGL FMALE 29POS 0.156
- Series：357
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：29
- Number of Positions：29
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：Card Guides
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 357-029-527-158
Edgeboard Connectors Overview
The EDAC Inc. 357-029-527-158 is a standard card edge connector from the 357 series, designed for vertical PCB mounting. It features 29 positions with a 3.96 mm (0.156 inch) pitch and supports single-edge board configurations. The connector accommodates PCB thicknesses ranging from 1.37 mm to 1.78 mm (0.054" to 0.070"). Contacts are gold-plated copper alloy, and the housing is black thermoplastic polyester. It utilizes through-hole solder termination.
Edgeboard Connectors Feature Summary
- Vertical mounting orientation for direct PCB integration
- Gold-plated contacts for reliable signal transmission
- Single-edge configuration for specified card types
Edgeboard Connectors Applications
- Medical interconnect solutions
- Agricultural technology equipment
- Industrial control systems
Edgeboard Connectors Procurement Notes
Verify component authenticity against official EDAC documentation before integration. Confirm that the specific suffix matches project requirements, as ordering codes may denote packaging or minor variations without altering electrical function. Ensure compatibility with target PCB thickness specifications during procurement planning.
Edgeboard Connectors Selection Notes
Select this model when a 29-position vertical interface is required. Verify that the 3.96 mm pitch aligns with the design layout. Ensure the application environment falls within the operational temperature range of -40°C to 105°C. Confirm that the single-edge card type matches the mating hardware specifications.
Edgeboard Connectors Part Context
This component belongs to the EDAC 357 series of standard card edge connectors. The series provides versatile interconnect options for various industries, including medical and agricultural technology. These connectors are engineered for durability in harsh environments while maintaining consistent electrical performance across the product line.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for verified alternatives. Cross-reference pin counts and pitch dimensions to ensure mechanical fit. No public substitute part numbers are confirmed in available documentation.
