357-036-540-268

Edgeboard Connectors Overview

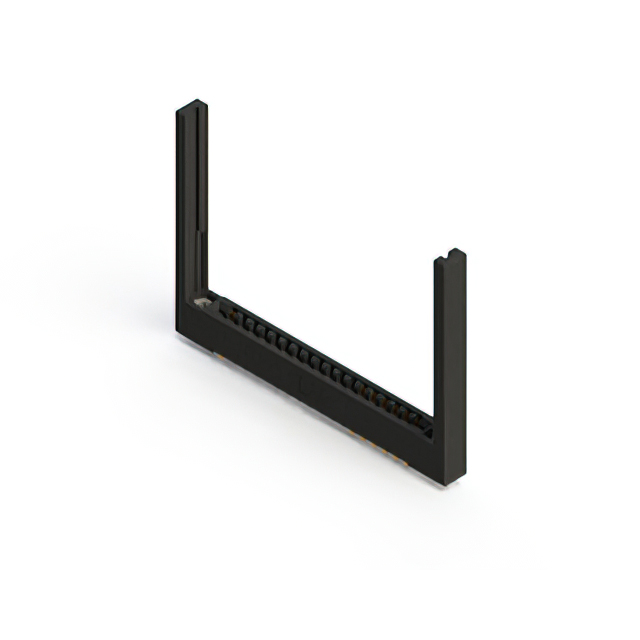

The EDAC Inc. 357-036-540-268 is a standard card edge connector featuring 36 positions with a 3.96 mm pitch. Designed for vertical panel mounting, it accommodates a board thickness of 1.57 mm. The contacts are gold-plated copper alloy, and the housing is constructed from thermoplastic polyester. This dual-row female connector supports wire wrap termination and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for high-density interconnects
• Vertical panel mount installation style for secure positioning
• Gold-plated contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

• Medical interconnect systems requiring robust connections
• Agricultural technology equipment in harsh environments
• Industrial control panels needing durable interfaces
• Communication infrastructure hardware

Edgeboard Connectors Procurement Notes

Verify RoHS compliance status through official manufacturer documentation before integration. Confirm that the specific ordering suffix matches the required flange configuration and termination type. Cross-reference the datasheet to ensure the 36-position layout aligns with PCB design constraints. Validate operating temperature ratings against environmental conditions. Ensure compatibility with 1.57 mm board thickness specifications.

Edgeboard Connectors Selection Notes

Select this component when a 36-position interface with 3.96 mm spacing is required. The vertical orientation suits panel-mounted applications where space efficiency is critical. Gold plating offers corrosion resistance for long-term reliability. Verify that the wire wrap termination method matches the assembly process. Consider the thermoplastic polyester material for its durability in industrial settings.

Edgeboard Connectors Part Context

This part belongs to the EDAC 357 series of standard card edge connectors. The series is characterized by a 3.96 mm pitch and 1.57 mm board thickness compatibility. It is designed for general-purpose electronic applications across various industries. The 357 series provides a reliable solution for connecting printed circuit boards to system backplanes or panels.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers: None identified in available documentation.
