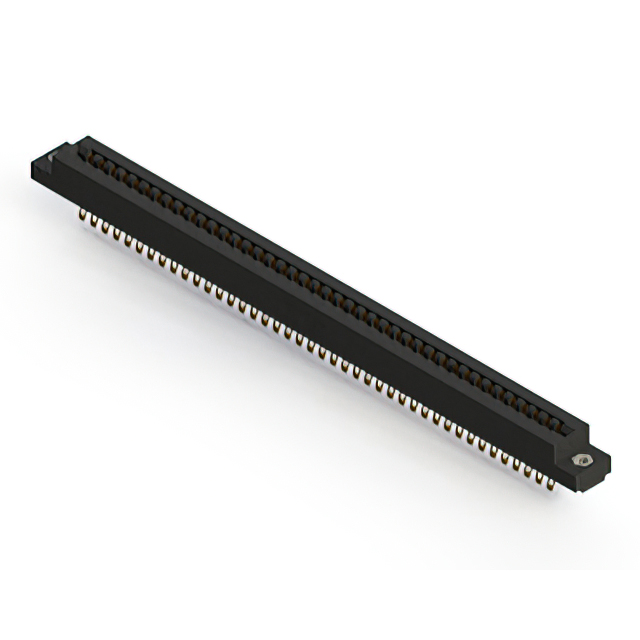

357-084-555-208 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 84POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 357-084-555-208
- Description：CONN EDGE DUAL FMALE 84POS 0.156
- Series：357
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：42
- Number of Positions：84
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 357-084-555-208
Edgeboard Connectors Overview
The EDAC Inc. 357-084-555-208 is a standard card edge connector featuring 84 positions with a 3.96 mm pitch and dual rows. Designed for vertical panel mounting, it utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. The component supports a board thickness of 1.57 mm and operates within a temperature range of -40°C to +105°C. It offers an insulation resistance of 5 GOhms and a current rating of 5 A per contact.
Edgeboard Connectors Feature Summary
- Dual-row female configuration for high-density signal transmission
- Vertical panel mount design with unified threaded insert options
- Gold-plated contacts ensure reliable conductivity in harsh environments
Edgeboard Connectors Applications
- Medical interconnect systems requiring durable connections
- Industrial control panels needing robust signal interfaces
- Agricultural technology equipment exposed to harsh conditions
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to confirm flange presence and termination style. Confirm RoHS compliance status through official documentation before integration. Ensure the selected variant matches the required panel thickness and mounting hardware specifications for proper mechanical fit.
Edgeboard Connectors Selection Notes
Select this model when a dual-row interface with 84 positions is required. Verify that the application environment stays within the specified temperature limits. Ensure the PCB design accommodates the 3.96 mm pitch and 1.57 mm board thickness constraints for optimal mating performance.
Edgeboard Connectors Part Context
This component belongs to the EDAC 357 series, which provides standard card edge connectors for various industries. The series includes options for different position counts and mounting styles. EDAC designs these connectors to meet rigorous reliability standards for communication, consumer electronics, and industrial applications.
Edgeboard Connectors Replacement Considerations
Direct substitutes include other EDAC 357 series variants with matching 84-position configurations. Verify compatibility regarding pitch, row count, and mounting orientation before substitution.
