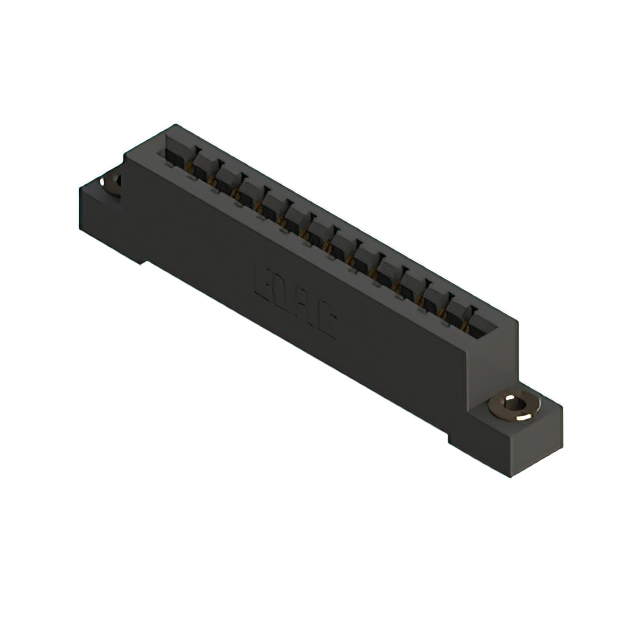

387-013-523-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 13POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 387-013-523-103
- Description：CONN EDGE SGL FMALE 13POS 0.156
- Series：387
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：13
- Number of Positions：13
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 387-013-523-103
Edgeboard Connectors Overview
The EDAC Inc. 387-013-523-103 is a single-row female card edge connector from the 387 Series, designed for through-hole mounting. It features 13 positions with a 0.156-inch (3.96 mm) contact spacing and accepts board thicknesses between 0.054 and 0.070 inches. The contacts are made of copper alloy with a gold finish, housed in black thermoplastic polyester insulation. Operating temperature ranges from -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Single-edge female configuration with 13 positions
- Gold-plated copper alloy cantilever contacts
- Through-hole termination for reliable PCB attachment
- Black thermoplastic polyester housing material
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Consumer electronics module connections
- Medical device circuit board interfaces
Edgeboard Connectors Procurement Notes
Verify the specific suffix code against official EDAC documentation to confirm exact flange dimensions and plating specifications. Ensure compatibility with target PCB thickness tolerances before procurement. Confirm RoHS compliance status matches current regulatory requirements for the intended deployment region.
Edgeboard Connectors Selection Notes
Select this component when a single-row interface with 13 positions is required. Verify that the 0.156-inch pitch aligns with the design layout. Consider the through-hole mounting style and operating temperature range relative to the application environment constraints.
Edgeboard Connectors Part Context
This part belongs to the EDAC 387 Series, which provides standard card edge connectors. The series offers various position counts and mounting options. This specific model represents a single-sided female variant within that broader product family.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC ordering guide for direct substitutes within the 387 series. Cross-reference pin count and pitch with other manufacturers only if mechanical and electrical specifications match exactly.
