Edgeboard Connectors Overview

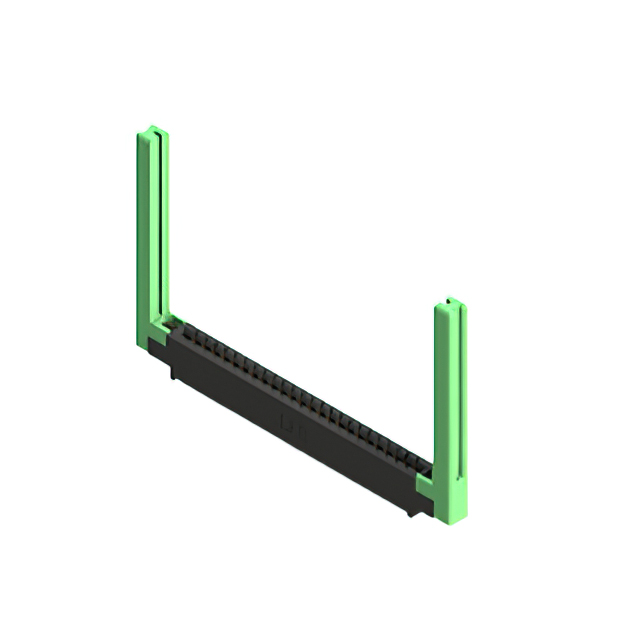

The EDAC Inc. 387-024-559-658 is a standard card edge connector from the 387 Series, designed for single-edge board applications. It features 24 positions with a 0.156-inch (3.96mm) pitch and accepts PCB thicknesses of 0.054 to 0.070 inches. The connector utilizes female copper alloy contacts with gold plating and employs a cantilever contact type. It supports through-hole mounting in a right-angle configuration with wire wrap termination. The housing is black thermoplastic polyester, rated for operation between -40°C and +105°C.

Edgeboard Connectors Feature Summary

• Right-angle through-hole mounting with wire wrap termination for secure board attachment
• Gold-plated cantilever contacts ensure reliable signal transmission on single-edge boards
• Thermoplastic polyester insulation provides stability across a wide temperature range

Edgeboard Connectors Applications

• Single-sided printed circuit board interconnections
• Industrial control system module interfaces
• Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 387 Series Ordering Guide to confirm exact termination style and flange specifications. Ensure compatibility with target PCB thickness limits and verify RoHS compliance status prior to final procurement approval.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, single-row connection is required for thick PCBs. Confirm that the wire wrap termination method aligns with assembly capabilities and that the 0.156-inch pitch matches the design footprint requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 387 Series, which offers various configurations for card edge applications. The series provides options for different row counts, termination styles, and flange types to accommodate diverse mechanical and electrical interface needs within industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 387 Series cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical pitch, position count, and termination characteristics to preserve mechanical fit and electrical performance.
