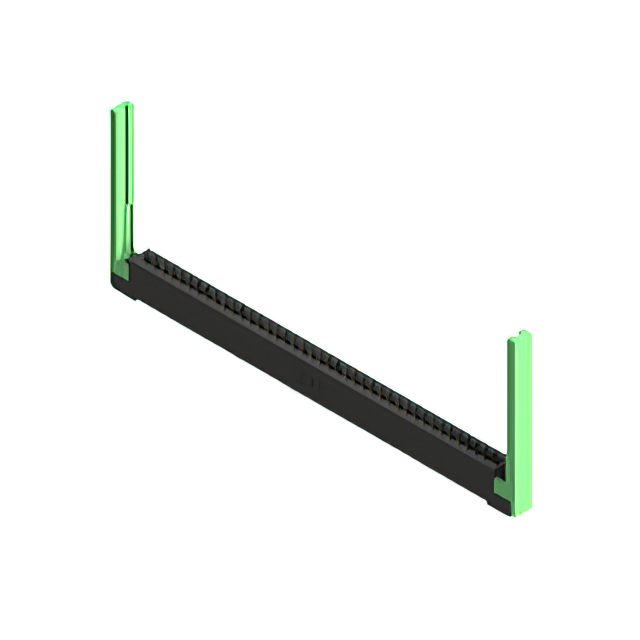

387-040-523-168 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 40POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 387-040-523-168
- Description：CONN EDGE SGL FMALE 40POS 0.156
- Series：387
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：40
- Number of Positions：40
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 387-040-523-168
Edgeboard Connectors Overview
The EDAC Inc. 387-040-523-168 is a standard card edge connector from the 387 Series, designed for single-row applications. It features 40 positions with a female contact type and a pitch of 0.156 inches (3.96 mm). The connector utilizes gold-plated contacts on a copper alloy base, housed in a black thermoplastic polyester insulator. It supports through-hole termination and accommodates board thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm).
Edgeboard Connectors Feature Summary
- Single-row female configuration with 40 positions for reliable signal transmission.
- Gold-plated contacts ensure durability and low contact resistance.
- Thermoplastic polyester housing provides thermal stability and mechanical strength.
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects.
- Telecommunications equipment interface modules.
- Consumer electronics internal board connections.
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact flange and termination specifications. Ensure compatibility with the target PCB thickness range of 1.37 mm to 1.78 mm. Confirm RoHS compliance status as per current regulatory requirements before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component for applications requiring a single-row, 40-position connection with a 3.96 mm pitch. It is suitable for through-hole mounting where vertical orientation is required. Consider the operating temperature range of -40°C to +105°C for environmental suitability.
Edgeboard Connectors Part Context
This part belongs to the EDAC 387 Series, which offers a wide variety of card edge connectors. The series is characterized by its consistent 0.156-inch pitch and diverse positioning options, catering to various industrial and commercial electronic assembly needs.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC 337/387 Series Ordering Guide for verified substitute part numbers. Cross-reference pin count, pitch, and termination style to ensure functional equivalence without modifying the design.
Edgeboard Connectors FAQ
What is the maximum operating temperature for this connector?
The connector is rated for an operating temperature range of -40°C to +105°C.
Does this connector support double-sided cards?
No, this specific model is designed for single-edge, single-row applications.
