391-014-522-107

Edgeboard Connectors Overview

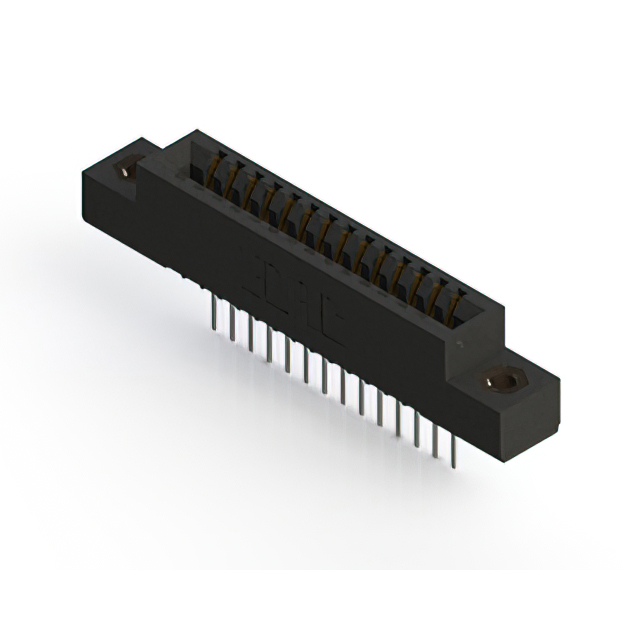

The EDAC Inc. 391-014-522-107 is a single-edge female card edge connector designed for through-hole mounting. It features 14 positions with a 0.100 inch (2.54 mm) contact spacing. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. The housing is black thermoplastic polyester, rated for operation between -40°C and 105°C. It supports non-specified dual-edge cards with thicknesses ranging from 0.054 to 0.070 inches.

Edgeboard Connectors Feature Summary

• Single-edge female configuration for vertical board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Flanged design with floating spool for secure alignment
• Through-hole termination for robust PCB attachment

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Medical device circuit board assembly
• Consumer electronics module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 341/391 Series Ordering Guide to confirm exact physical dimensions and contact finish specifications. Ensure compatibility with target PCB hole sizes and panel thickness requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 14-position interface is required for vertical mating. Confirm that the target card thickness falls within the specified 0.054 to 0.070 inch range. Validate that the operating environment temperature remains within the -40°C to 105°C operational limits defined by the material ratings.

Edgeboard Connectors Part Context

This part belongs to the EDAC 391 series of standard card edge connectors. The series provides various position counts and edge configurations for general-purpose electronic applications. The 391 series is characterized by its flanged housing and through-hole termination style, widely used in modular electronic systems requiring durable mechanical connections.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 341/391 Series Ordering Guide for direct cross-reference part numbers. Verify that any substitute maintains identical pin count, pitch, and mounting style to ensure mechanical fit and electrical continuity without redesigning the host PCB footprint.
