392-056-558-204

$10.67

Description：CONN EDGE DUAL FMALE 56POS 0.100
Series：392
Mfr：EDAC Inc.
Package：Box

SKU:7a3c43560557 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

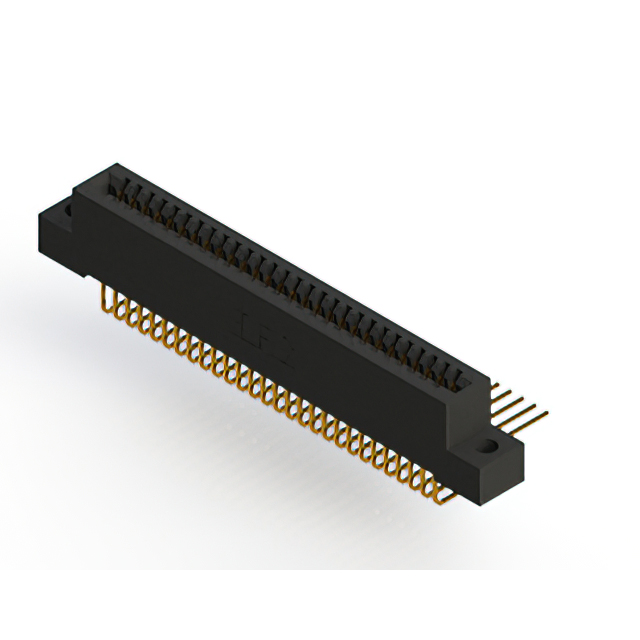

392-056-558-204 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 56POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 392-056-558-204

Description：CONN EDGE DUAL FMALE 56POS 0.100
Series：392
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：28
Number of Positions：56
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Solder, Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 392-056-558-204

392-056-558-204

Edgeboard Connectors Overview

The EDAC Inc. 392-056-558-204 is a standard card edge connector featuring 56 positions with a 2.54 mm (0.100 inch) pitch. Designed for dual-edge mating, it utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The unit supports a PCB thickness of 1.57 mm and employs a thermoplastic polyester insulator in black. It is configured for vertical through-hole mounting with flanges, operating within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual-edge contact configuration for secure board insertion
Gold-plated contacts on copper alloy substrate
Vertical panel-mount design with integrated flanges

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Embedded computing module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm exact contact plating thickness, insulation material grade, and flange dimensions. Ensure the target printed circuit board accommodates the specified 1.57 mm thickness constraint and that the assembly process aligns with the vertical through-hole termination requirements defined in the official specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, high-density connection is required for vertical integration. The 2.54 mm pitch allows for standard board layouts, while the gold plating provides corrosion resistance. Consider the physical constraints of the vertical orientation and the necessity of panel mounting features when evaluating alternative single-row or surface-mount options.

Edgeboard Connectors Part Context

This part belongs to the EDAC 392 series of standard card edge connectors. The series offers various position counts and termination styles, providing modular solutions for electronic assemblies requiring robust mechanical retention and electrical continuity between stacked boards or modules.
