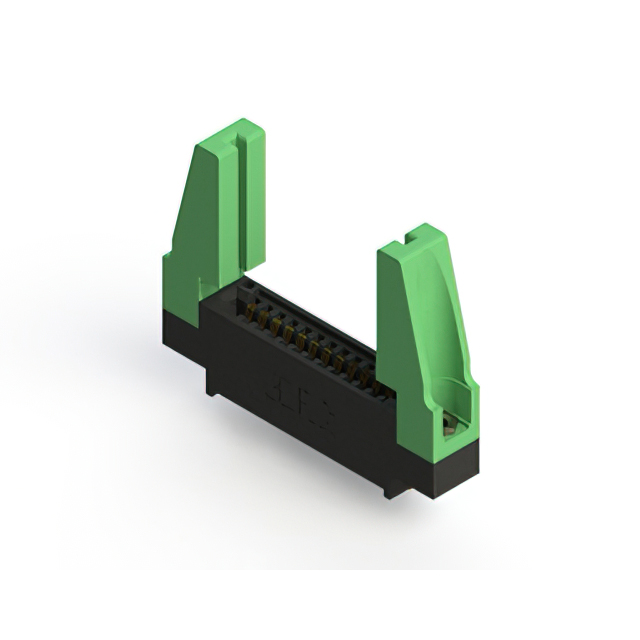

395-013-525-688

$9.32

Description：CONN EDGE SINGLE FML 13POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Bulk

SKU:783b9a1742cc Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-013-525-688 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 13POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-013-525-688

Description：CONN EDGE SINGLE FML 13POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：13
Number of Positions：13
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：Card Guides
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-013-525-688

395-013-525-688

Edgeboard Connectors Overview

The EDAC Inc. 395-013-525-688 is a standard card edge connector from the 395 series, designed for vertical panel mount applications. It features a single row of 13 female contacts with a 0.100-inch (2.54mm) pitch. The connector utilizes solder lug termination and gold-plated copper alloy contacts housed in a black thermoplastic polyester insulator. It supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Vertical panel mount installation style
Gold-plated copper alloy contacts
Thermoplastic polyester insulation

Edgeboard Connectors Applications

Standard card edge interconnects
Panel-mounted electronic assemblies
General industrial circuit connections

Edgeboard Connectors Procurement Notes

Verify the specific contact count and row configuration against the official datasheet before integration. Confirm that the solder lug termination method aligns with the target PCB manufacturing capabilities. Ensure the operating temperature range meets the environmental requirements of the final application. Cross-reference the insulator material properties for chemical resistance if exposed to harsh agents.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 13-position interface is required for vertical mounting. The 0.100-inch pitch accommodates standard card edge designs. Consider the gold plating for reliable signal transmission in non-corrosive environments. Evaluate the thermoplastic polyester housing for thermal stability during operation. Verify compatibility with the specific board thickness limits defined by the manufacturer specifications.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options for diverse connectivity needs. The 395 series is characterized by robust construction suitable for general-purpose electronic applications requiring reliable mechanical and electrical connections.
